BAKTH-ITL0030050162-01 3S Lithium Battery Protection Board for Handheld Device Battery
| Place of Origin | Dongguan China |
|---|---|
| Brand Name | BAKTH / Neutral / OEM |
| Certification | IEC62133 |
| Model Number | BAKTH-ITL0030050162-01 |
| Minimum Order Quantity | 10 Piece |
| Packaging Details | Industrial Paper Carton |
| Delivery Time | 3-4 weeks |
| Payment Terms | T/T |
| Supply Ability | 10000PCS/Month |
Product Details
| Type Of Protective Board | 3S Lithium Battery Protection Board | Product Solution | BQ4050 +AON6354 |
|---|---|---|---|
| Compatible Interface | SMBUS | Over Charge Detection Voltage(Cell) | 4.230V±0.025V |
| Over Discharge Detection Voltage(Cell) | 2.700V±0.025V | Over Current Discharge | 5.0A±0.5A |
| Over Current Charge | 4.0A±0.5A | Max. Discharge Current | 5A |
| Max. Charge Current | 5A | Dimension | 53.9*18.51*1.0mm |
| Sample | Available |
Product Description

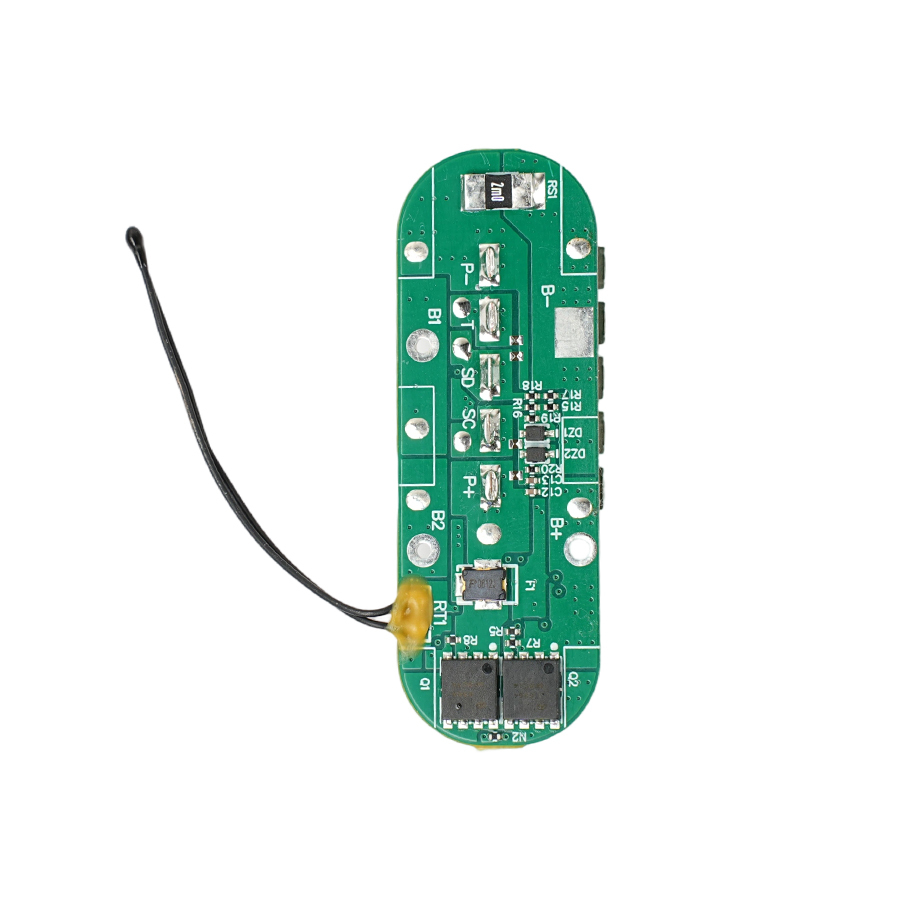

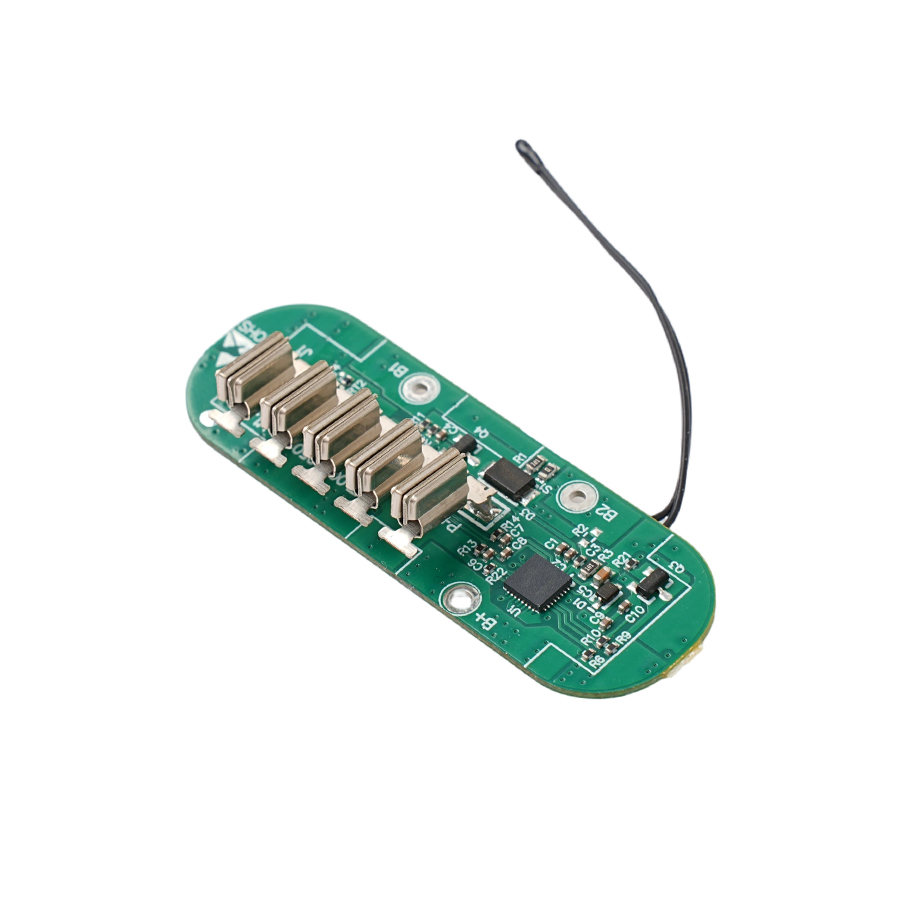

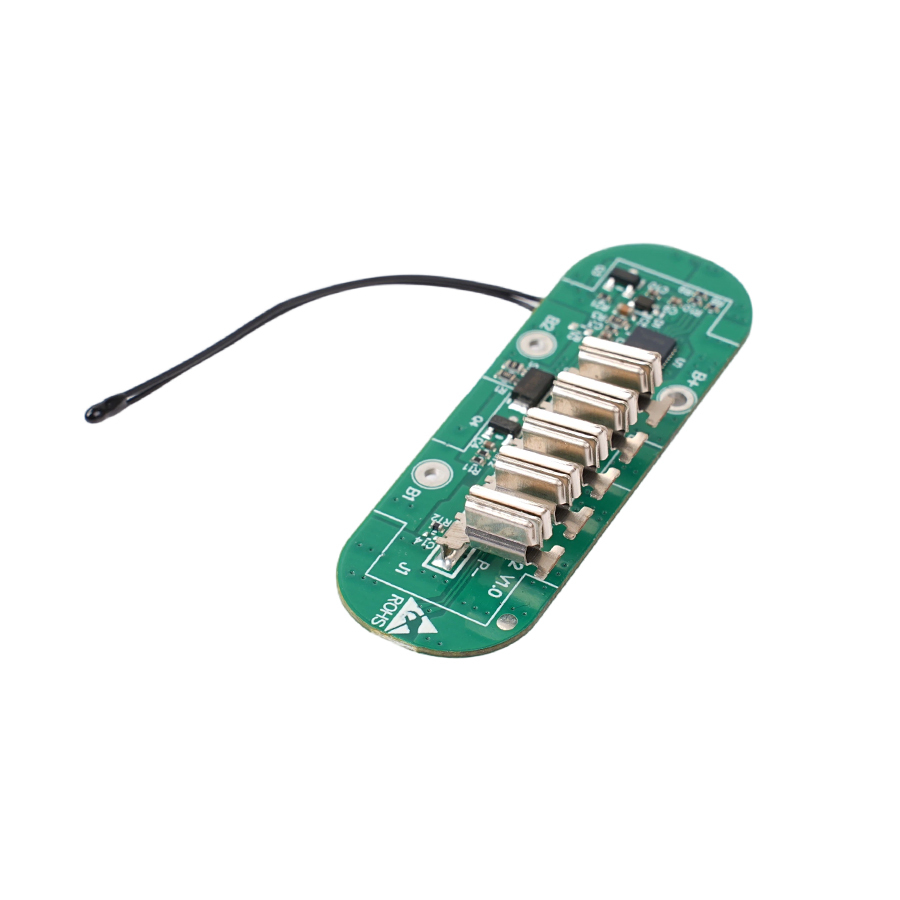

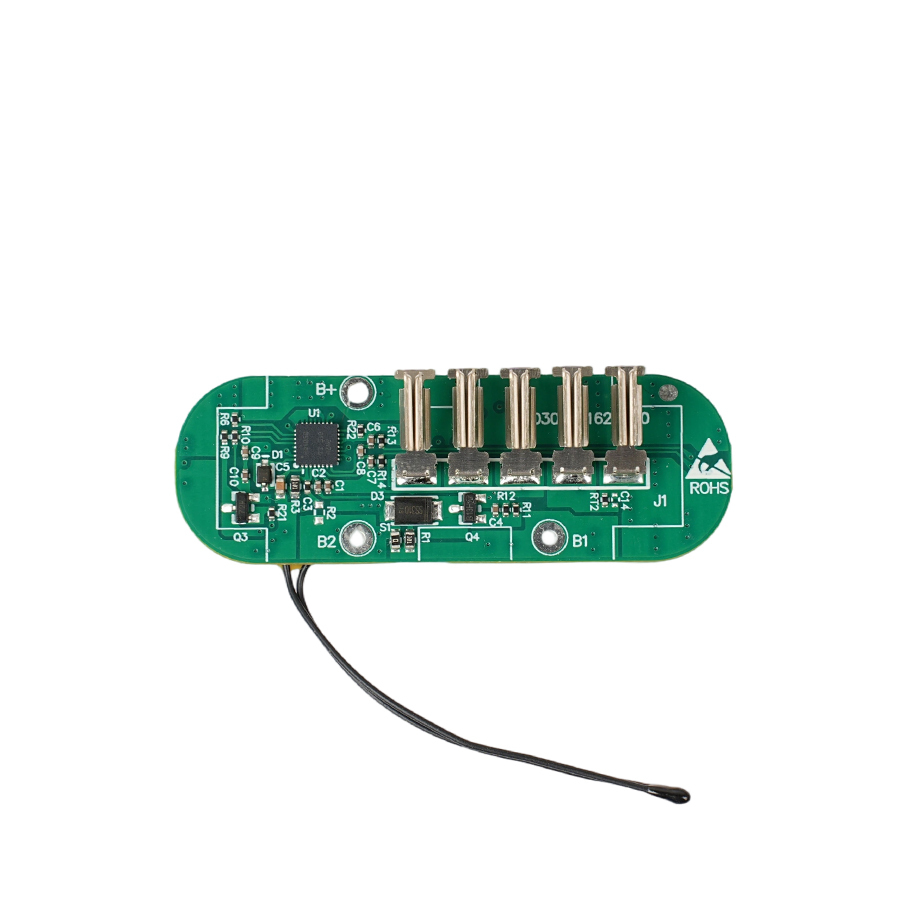

BAKTH-ITL0030050162-01 3S Lithium Battery Protection Board for Handheld Device Battery
The BAKTH-ITL0030050162-01 is a professional 3S lithium battery protection board developed for 3-series lithium-ion battery packs (11.1V nominal voltage, 12.6V full charge). Featuring a reliable charge and discharge current matching design, this BMS supports a maximum continuous discharge current of 5A and a maximum continuous charge current of 5A. It comes with precise over-current protection thresholds, including 5.0A±0.5A discharge over-current protection and 4.0A±0.5A charge over-current protection. Integrated with full-range safety protection, precise cell voltage monitoring and passive balancing function, this board provides stable, reliable and long-term protective management for medium-power 3S battery packs used in portable devices, handheld equipment and small industrial power systems.
Core Advantages
- Full-Suite Safety Protection: Complete protection against overcharge, over-discharge, overcurrent, short circuit, and over-temperature, maximizing battery safety and lifespan.
-
Cell Balancing for Longer Life: Built-in cell balancing function eliminates cell inconsistency, ensuring each 4S cell charges and discharges uniformly, improving battery pack efficiency and extending its overall service life.
- Flexible Customization: Adjustable overcurrent thresholds and OEM/ODM options to match your specific product requirements.
About Us
Shenzhen BAKTH Technology Co., Ltd. was established in 2002. For 21 years, we've specialized in battery pack assembly and PCM/BMS design and production. Our 5,000-square-meter factory features automated production lines and SMT assembly capabilities.
Certifications
FAQ
What kind of certificate your battery pack owned?
ISO9001, ISO14001, UL, BIS, KC, USTC, CE, CB - our battery packs have reliable quality assurance.
Do you have MOQ?
No limitation - we offer competitive pricing based on order quantity. Sample orders are welcome to test our quality before bulk orders.
What's the warranty? How can we guarantee quality?
Standard warranty is 12 months (negotiable for special products). Our complete production process ensures quality before shipment.
What's the lead time?
Standard products: 3-4 weeks for samples (depending on cell availability), 5-8 weeks for bulk orders (varies by model and quantity).
Can we have our own Logo on the battery pack? Can you accept customized battery?
Yes - our professional R&D team can provide customized solutions according to your requirements.
