10S 60A Smart BMS With Current Protection For Versatile Applications
| Place of Origin | Guangdong, China |
|---|---|
| Brand Name | BAKTH/OEM/Neutral |
| Certification | Certified with RoHS / IEC62133/UL2054 certification |
| Model Number | BAKTH-0100600024-01 |
| Minimum Order Quantity | 1-200PCS |
| Price | USD15.0-USD30.0/PCS |
| Packaging Details | Standard Export Packing |
| Delivery Time | 10-15 working days |
| Payment Terms | ,T/T |
| Supply Ability | Daily Delivery Capability: Approx. 1,800 units/day |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Model Number | BAKTH-0100600024-01 | Series Supported | 10S |
|---|---|---|---|
| Continuous Discharge Current (A) | 60A | Balancing Type | Active Balancing / Passive Balancing (Optional) |
| Over Charge Detection Voltage(Cell) | 3.70V±0.050V （Adjustable） | Over Discharge Detection Voltage(Cell) | 2.50V±0.050V（Adjustable） |
| Customization Available | Yes | Warranty | 12 Months |
| Highlight | 10S 60A smart BMS,BMS with current protection,versatile BMS PCB |
||
Product Description

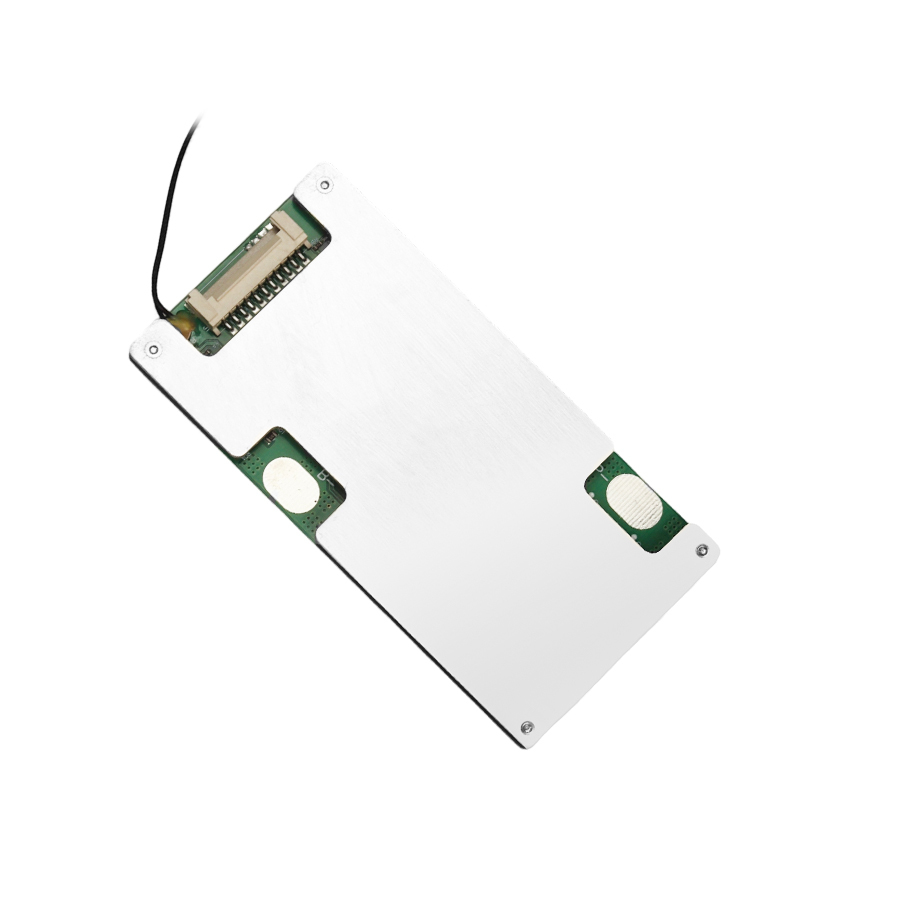

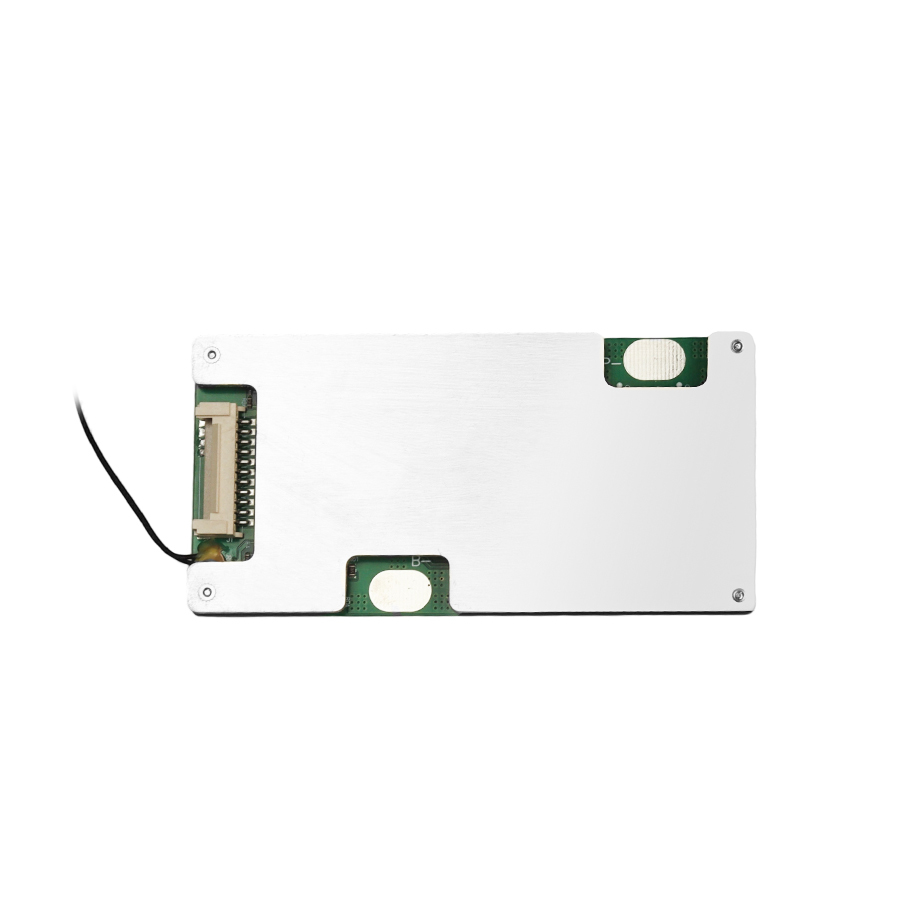

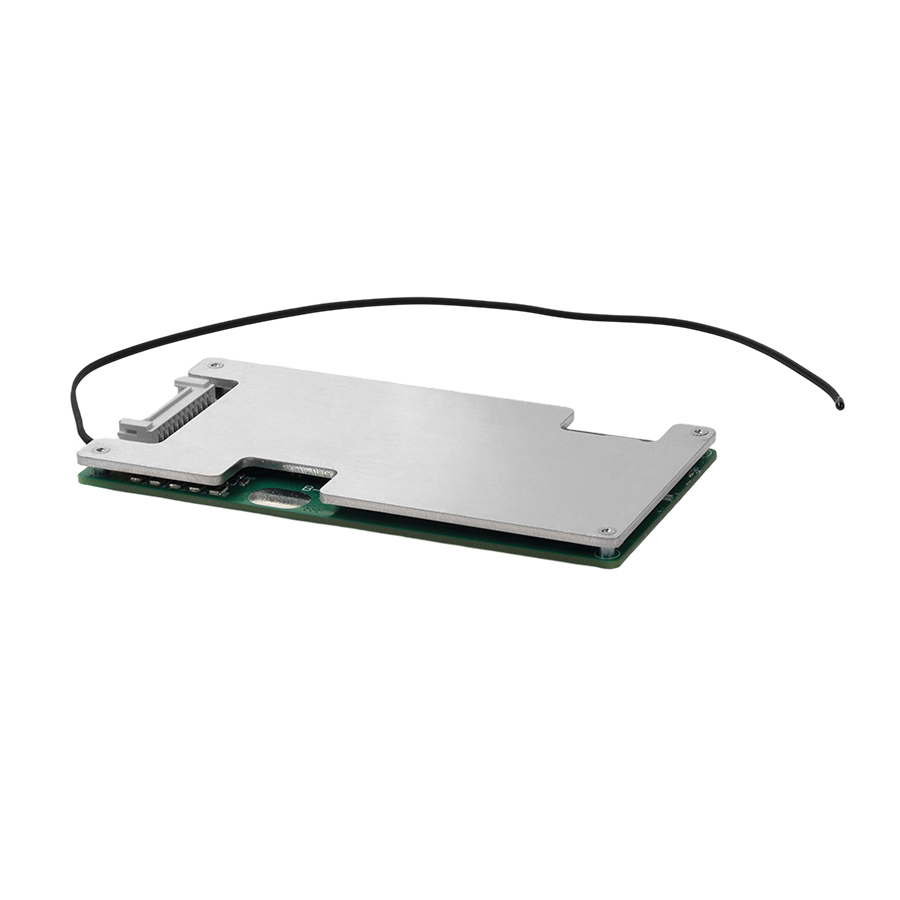

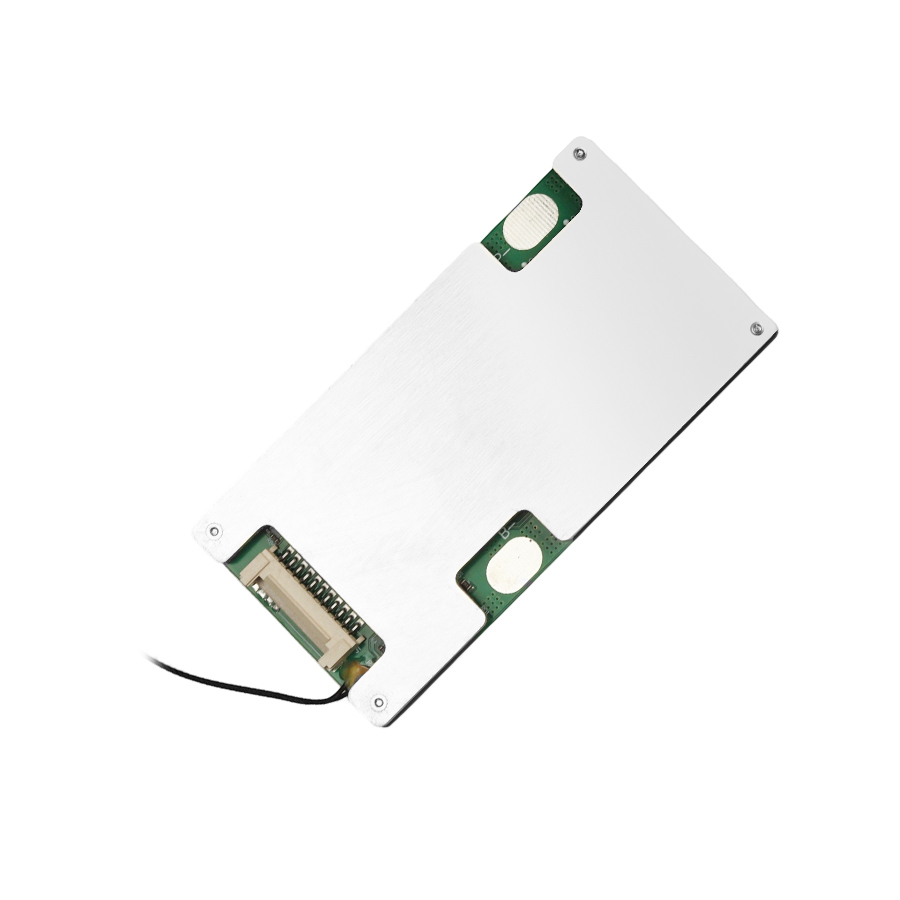

10S 60A Smart BMS With Current Protection For Versatile Applications
Product Specifications
| Attribute | Value |
|---|---|
| Model Number | BAKTH-0100600024-01 |
| Series Supported | 10S |
| Continuous Discharge Current | 60A |
| Balancing Type | Active Balancing / Passive Balancing (Optional) |
| Over charge detection voltage (Cell) | 3.70V±0.050V (Adjustable) |
| Over Discharge Detection Voltage (Cell) | 2.50V±0.050V (Adjustable) |
| Customization Available | Yes |
| Warranty | 12 months |
Technical Details
| Compatible Interface | / | Continuous Discharge Current | 60A |
| Over charge detection voltage (Cell) | 3.70V±0.050V Adjustable | Dimensions | 120mm × 60mm × 9mm |
| Over Discharge Detection Voltage (Cell) | 2.50V±0.05V Adjustable | Compliant certification standards | IEC62133 |
| Over Current Discharge | 100.0A±120.0A Adjustable | Type of Protective Board | 10S LiFe-PO4 battery protection board |
| Over Current Charge | 100.0A±120.0A Adjustable | Protection | OV, UV, OC, SC, OT, Balance |
| Discharging Temperature | -20~70℃ Adjustable | Charge Temperature | -5~55℃ Adjustable |
Product Description
The 10S 60A Intelligent Protection Board delivers high-performance battery management with customizable safety features, including adjustable discharge temperature (-20°C to 70°C), charge temperature (-5°C to 55°C), and discharge cutoff current (100-120A). Designed for lithium batteries in demanding applications, this BMS ensures reliable operation under extreme conditions while optimizing energy efficiency and longevity.
Key Features
- Built-in protections for over-voltage, under-voltage, short-circuit, over-current, and temperature to ensure safe battery operation
- Supports active balancing function to extend battery pack life and improve consistency
- Modular design for easy integration, suitable for various industrial and solar system applications
Application Scenarios
- Energy Storage Systems (ESS)
- Electric Power Tools
- Home Solar Battery Systems
- Drones and DIY Custom Li-ion Battery Packs
Warranty & Support
12-month warranty with lifetime technical support
100% tested before shipment to ensure safety and reliability
Dedicated account manager and technical support with 48-hour response
