7S 24V BAKTH-010S020A-0135-01 Li-ion BMS Protection Board for E-Bike Power Tool
| Place of Origin | Dongguan China |
|---|---|
| Brand Name | BAKTH / Neutral / OEM |
| Certification | IEC62133 |
| Model Number | BAKTH-010S020A-0135-01 |
| Minimum Order Quantity | 2 Piece |
| Price | USD 19.58~11.25 /PC |
| Packaging Details | Industrial Paper Carton |
| Delivery Time | 3-4 weeks |
| Payment Terms | T/T |
| Supply Ability | 10000PCS/Month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Type | 7S Lithium Battery Protection Board | Battery Type | Li-ION |
|---|---|---|---|
| Over Charge Detection Voltage(Cell) | 4.250V±0.025V | Over Discharge Detection Voltage(Cell) | 2.500V±0.050V |
| Over Current Discharge | 20A-30A Adjustable | Over Current Charge | 20A-30A Adjustable |
| Discharging Temperature | -20℃~65℃ Adjustable | Charge Temperature | -5℃~55℃ Adjustable |
| Dimension | 59*34*10 Mm | Max.Discharge Current | 15A |
| Sample | Available | ||
| Highlight | 24V Li-ion BMS board,E-Bike BMS protection board,Power Tool BMS with warranty |
||
Product Description

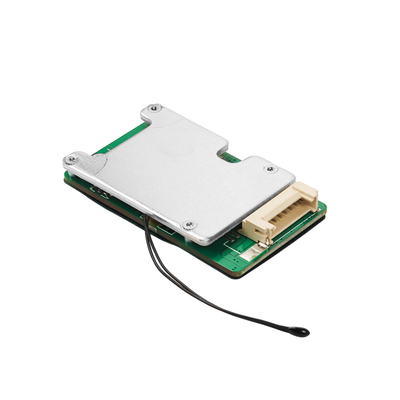

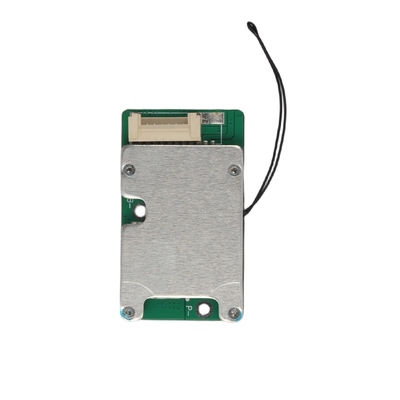

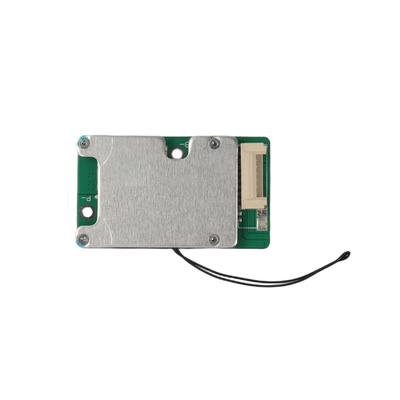

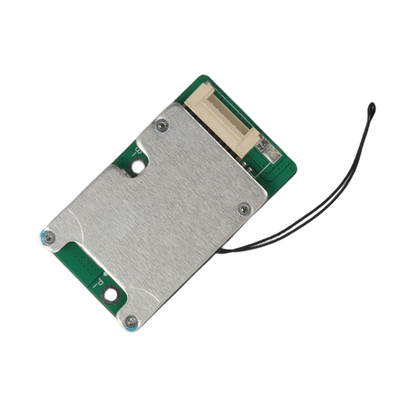

7S 24V BAKTH-010S020A-0135-01 Li-ion BMS Protection Board for E-Bike Power Tool
The BAKTH-010S020A-0135-01 is a specialized 7S lithium battery protection board, engineered to safeguard 7-cell series (7S) lithium battery packs—covering Li-ion, Li-polymer, and LiFePO4 chemistries—with tailored safety and performance. While its model code includes “010S” (indicating broad design compatibility), it is optimized for 7S configurations. This makes it ideal for medium-to-high voltage (nominal 25.2V for Li-ion, 22.4V for LiFePO4) devices that demand reliable protection and stable power delivery.
7S-Specific Protection for Multi-Cell Safety
Calibrated exclusively for 7S battery packs, the board addresses the unique risks of 7-series cells with targeted safeguards:
- Overcharge Protection: Triggers when any cell exceeds 4.25V (Li-ion) or 3.65V (LiFePO4), instantly cutting off charging current to prevent cell swelling, electrolyte breakdown, or thermal runaway—critical for 7S packs where cumulative voltage amplifies overcharge hazards.
- Undervoltage Protection: Shuts down discharge if a cell drops below 2.5V (Li-ion) or 2.0V (LiFePO4), avoiding irreversible capacity loss caused by “weak cells” that can disable the entire 7S system.
- Overcurrent & Short-Circuit Protection: Blocks currents exceeding 20A, shielding the 7S pack and connected devices from burnout during high-load operation (e.g., electric tool startups) or accidental short circuits.
- 7-Cell Balancing: Automatically equalizes voltage across all 7 cells during charging, eliminating uneven charge distribution—a common issue in multi-cell packs—and ensuring each cell operates at peak efficiency, extending the 7S pack’s lifespan by up to 35%.
About Us
Shenzhen BAKTH Technology Co., Ltd. was established in 2002. For 21 years, we've specialized in battery pack assembly and PCM/BMS design and production. Our 5,000-square-meter factory features automated production lines and SMT assembly capabilities.
Certifications
FAQ
What kind of certificate your battery pack owned?
ISO9001, ISO14001, UL, BIS, KC, USTC, CE, CB - our battery packs have reliable quality assurance.
Do you have MOQ?
No limitation - we offer competitive pricing based on order quantity. Sample orders are welcome to test our quality before bulk orders.
What's the warranty? How can we guarantee quality?
Standard warranty is 12 months (negotiable for special products). Our complete production process ensures quality before shipment.
What's the lead time?
Standard products: 3-4 weeks for samples (depending on cell availability), 5-8 weeks for bulk orders (varies by model and quantity).
Can we have our own Logo on the battery pack? Can you accept customized battery?
Yes - our professional R&D team can provide customized solutions according to your requirements.
