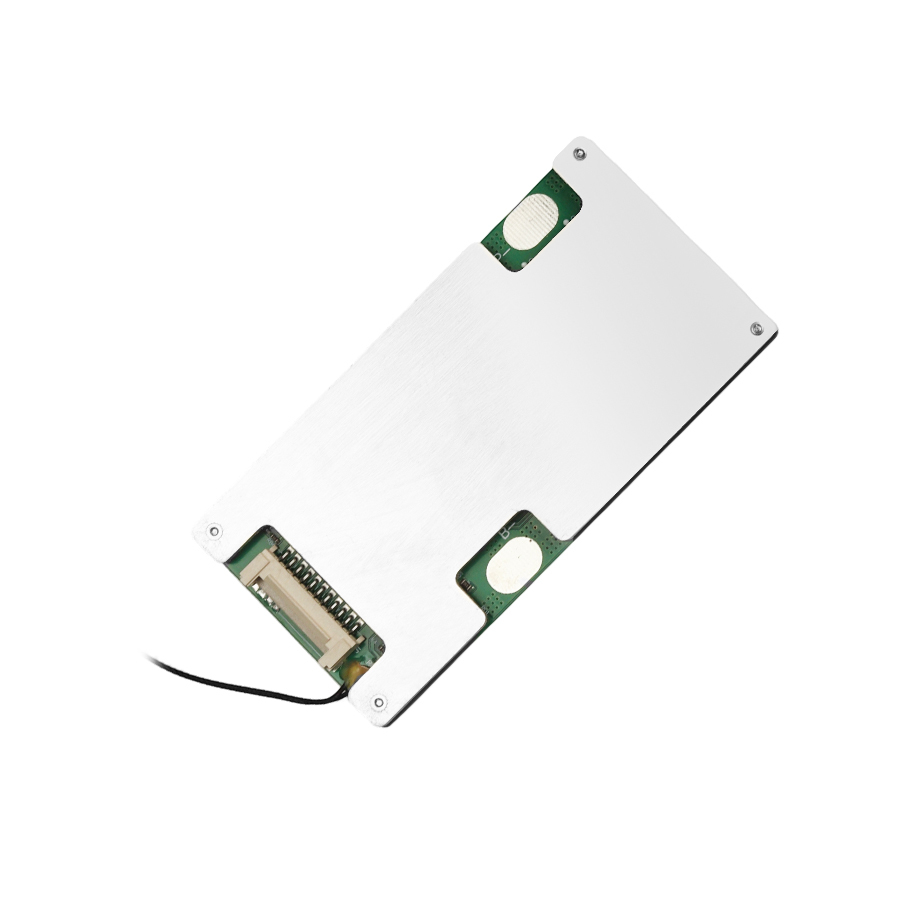

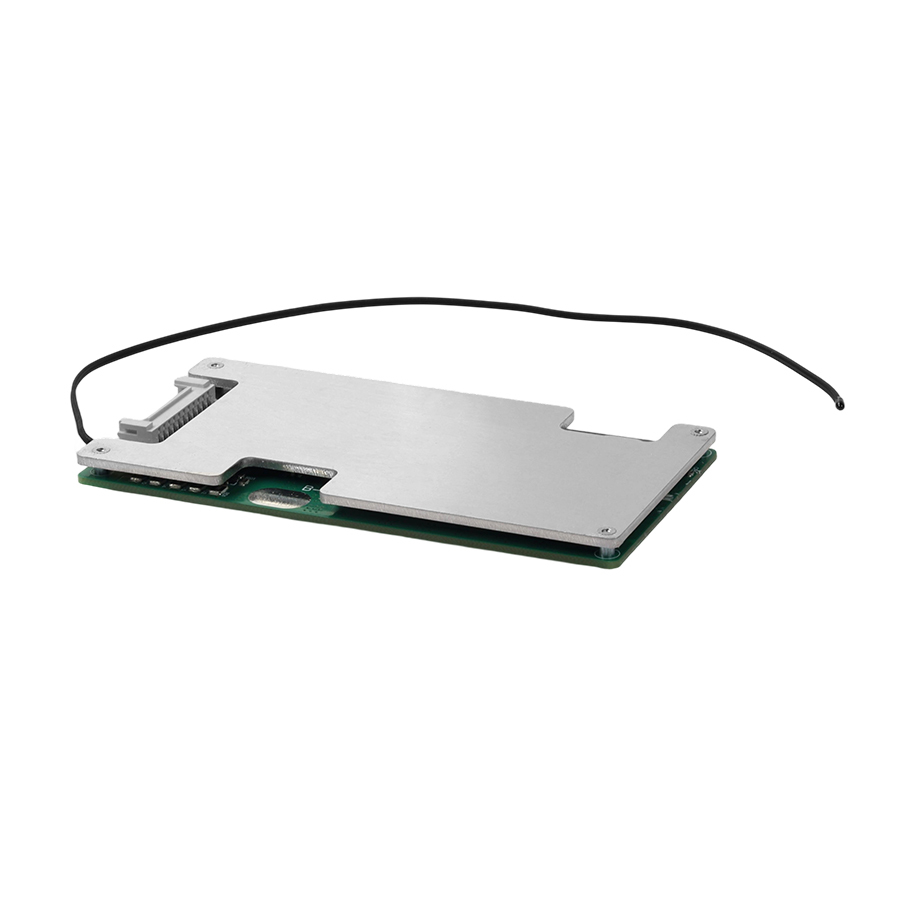

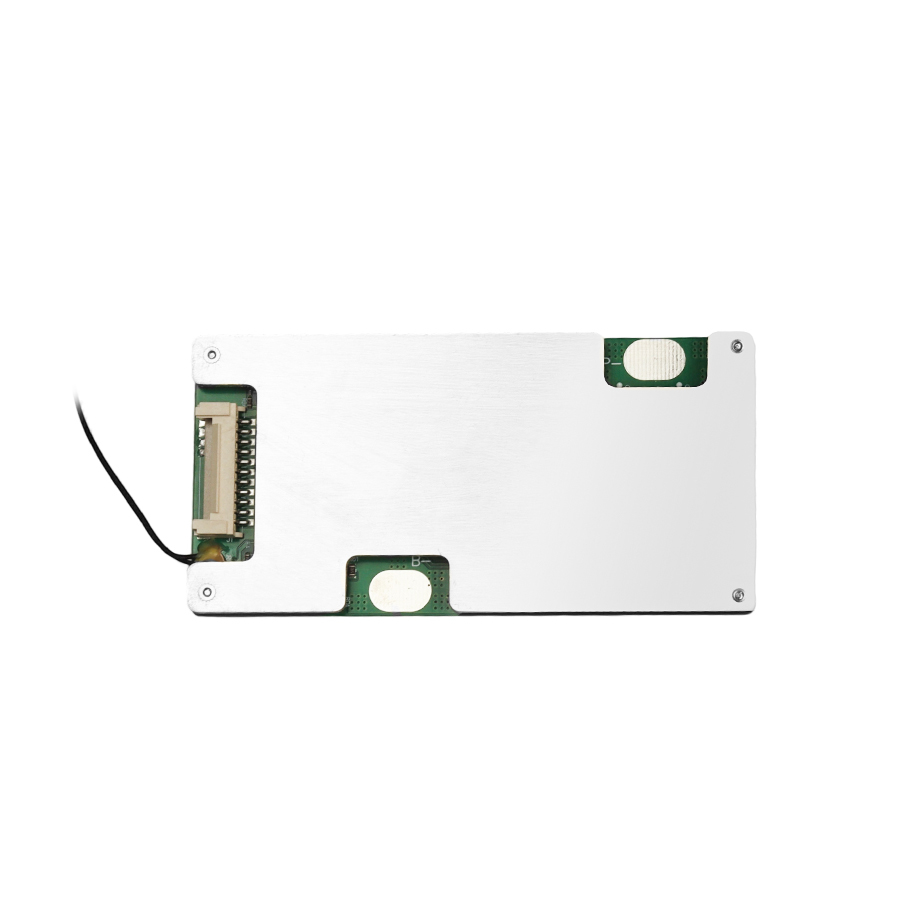

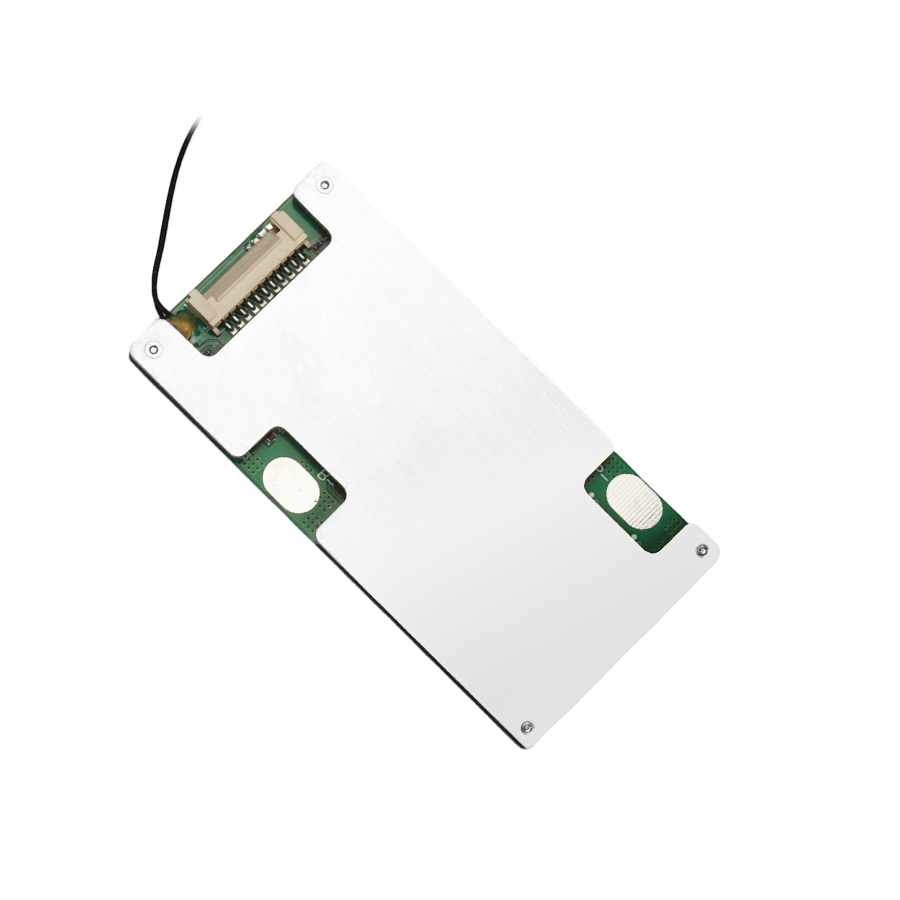

Factory wholesale 10S LiFePO4 Battery Protection Board for Heavy Electric Tools
| Place of Origin | Dongguan China |
|---|---|
| Brand Name | BAKTH / Neutral / OEM |
| Certification | IEC62133 |
| Model Number | ITL0100400032-01 |
| Minimum Order Quantity | 2 Piece |
| Price | USD 15-20 /PC |
| Packaging Details | Industrial Paper Carton |
| Delivery Time | 3-4 weeks |
| Payment Terms | T/T |
| Supply Ability | 10000PCS/Month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Type | 10S Lithium Battery Protection Board | Battery Type | LiFe-PO4 |
|---|---|---|---|
| Over Charge Detection Voltage(Cell) | 3.700V±0.050V Adjustable | Over Discharge Detection Voltage(Cell) | 2.500V±0.020V Adjustable |
| Over Current Discharge | 100A-120A Adjustable | Over Current Charge | 100A-120A Adjustable |
| Max.Discharge Current | 60A | Discharging Temperature | -20~70℃ Adjustable |
| Charge Temperature | -5~55℃ Adjustable | Dimension | 120*60*9 Mm |
| Sample | Available | ||
| Highlight | 10S LiFePO4 battery protection board,BMS PCB for heavy electric tools,LiFePO4 battery PCM with warranty |
||
Product Description
Factory wholesale 10S LiFePO4 Battery Protection Board for Heavy Electric Tools
Engineered exclusively for 10-cell series (10S) Lithium Iron Phosphate (LiFePO4) battery packs, this high-performance protection board delivers an impressive maximum discharge current of 60A—tailored to meet the high-power demands of heavy-duty applications. Optimized for LiFePO4’s unique electrochemical properties and 10S high-voltage configurations (nominal 32V, full charge 36.5V), it merges robust safety safeguards with ultra-high current handling, making it an ideal choice for high-power electric mobility, industrial equipment, and large-scale portable energy storage systems that rely on LiFePO4’s long cycle life and stability.
10S LiFePO4-Specific Protection & 60A High-Current Safeguards
Calibrated to LiFePO4’s distinct voltage window and 10-cell dynamics, the board provides targeted protection optimized for 60A extreme-power discharge:
Overcharge Protection: Triggers at 3.7 V per cell (total 37V for 10S packs), instantly cutting charging current to prevent LiFePO4 cell degradation—critical for 10S systems where voltage imbalance across 10 cells can accelerate capacity loss, especially under high-current stress.
Undervoltage Protection: Shuts down discharge at 2.5V per cell (total 25V for 10S packs), avoiding irreversible damage to LiFePO4 cells that are sensitive to deep discharge, even more so during 60A sustained high-load operation (e.g., electric vehicle acceleration or industrial tool heavy use).
60A Overcurrent & Short-Circuit Protection: Blocks currents exceeding 60A (max discharge) or 180A (peak surge), leveraging high-power MOSFETs to shield the 10S LiFePO4 pack and connected devices from burnout, overheating, or fire risks during extreme use or accidental short circuits.
10-Cell Active Balancing: Automatically equalizes voltage across all 10 LiFePO4 cells during charging, addressing the chemistry’s sensitivity to uneven charge distribution in high-cell-count, high-current packs. This extends battery lifespan by up to 45% vs. unbalanced systems and maintains consistent 60A discharge performance over cycles.
Ideal Application Scenarios
This board is tailored for 10S LiFePO4 devices requiring 60A peak discharge:
High-Power Mobility: 10S electric scooters (high-speed models), mini e-trucks, or off-road utility vehicles;
Industrial Tools: 10S cordless jackhammers, large concrete saws, or heavy-duty grinders (32V LiFePO4 systems);
Portable Energy Storage: 10S LiFePO4 power stations for job sites (powering multiple high-wattage tools) or emergency backup (running small appliances);
Specialized Equipment: Electric forklifts (small models), solar energy storage systems, or high-performance RC vehicles.
About Us
Shenzhen BAKTH Technology Co., Ltd. was established in 2002. For 21 years, we've specialized in battery pack assembly and PCM/BMS design and production. Our 5,000-square-meter factory features automated production lines and SMT assembly capabilities.
Certifications
FAQ
What kind of certificate your battery pack owned?
ISO9001, ISO14001, UL, BIS, KC, USTC, CE, CB - our battery packs have reliable quality assurance.
Do you have MOQ?
No limitation - we offer competitive pricing based on order quantity. Sample orders are welcome to test our quality before bulk orders.
What's the warranty? How can we guarantee quality?
Standard warranty is 12 months (negotiable for special products). Our complete production process ensures quality before shipment.
What's the lead time?
Standard products: 3-4 weeks for samples (depending on cell availability), 5-8 weeks for bulk orders (varies by model and quantity).
Can we have our own Logo on the battery pack? Can you accept customized battery?
Yes - our professional R&D team can provide customized solutions according to your requirements.
