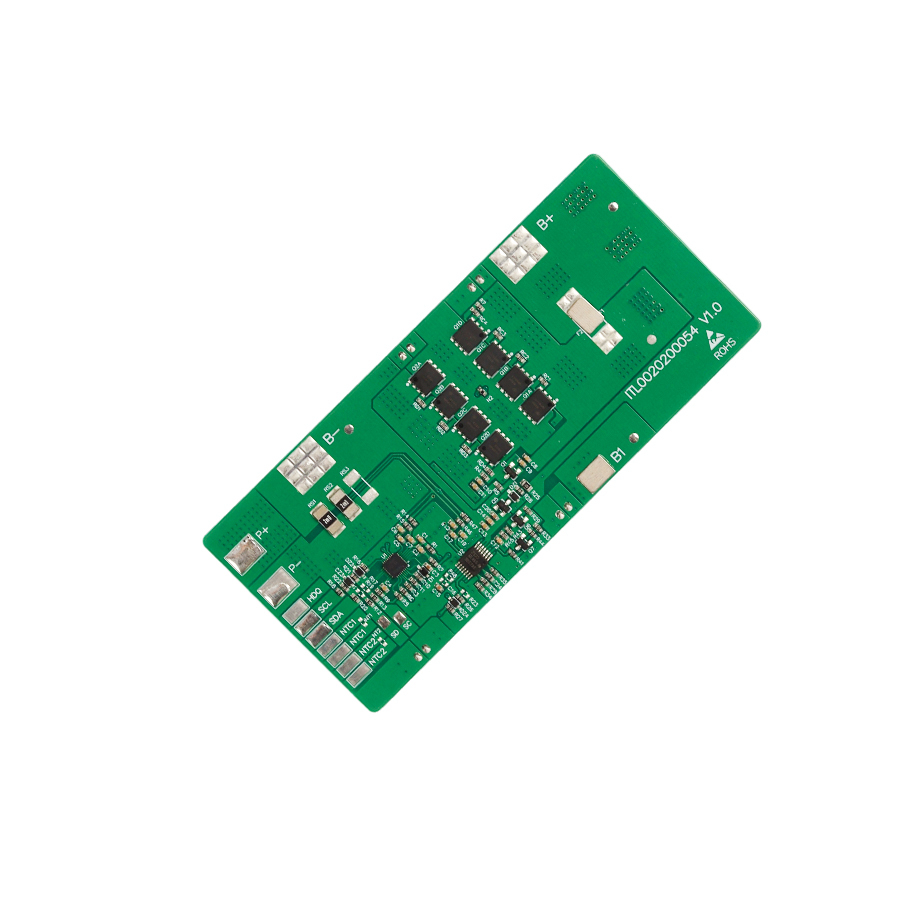

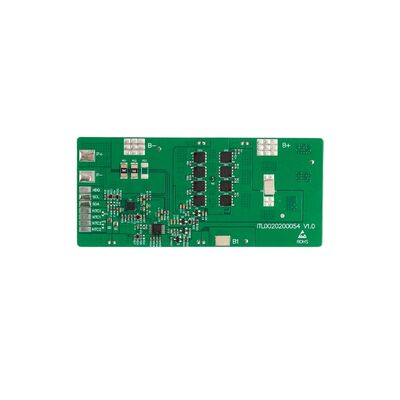

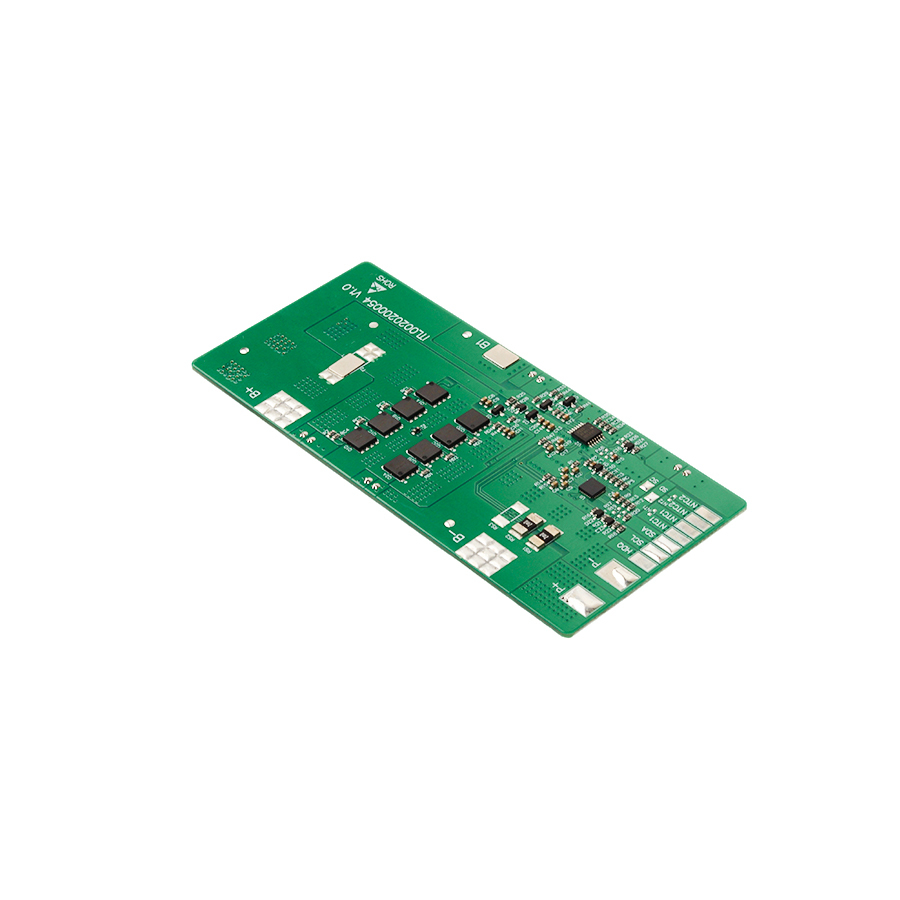

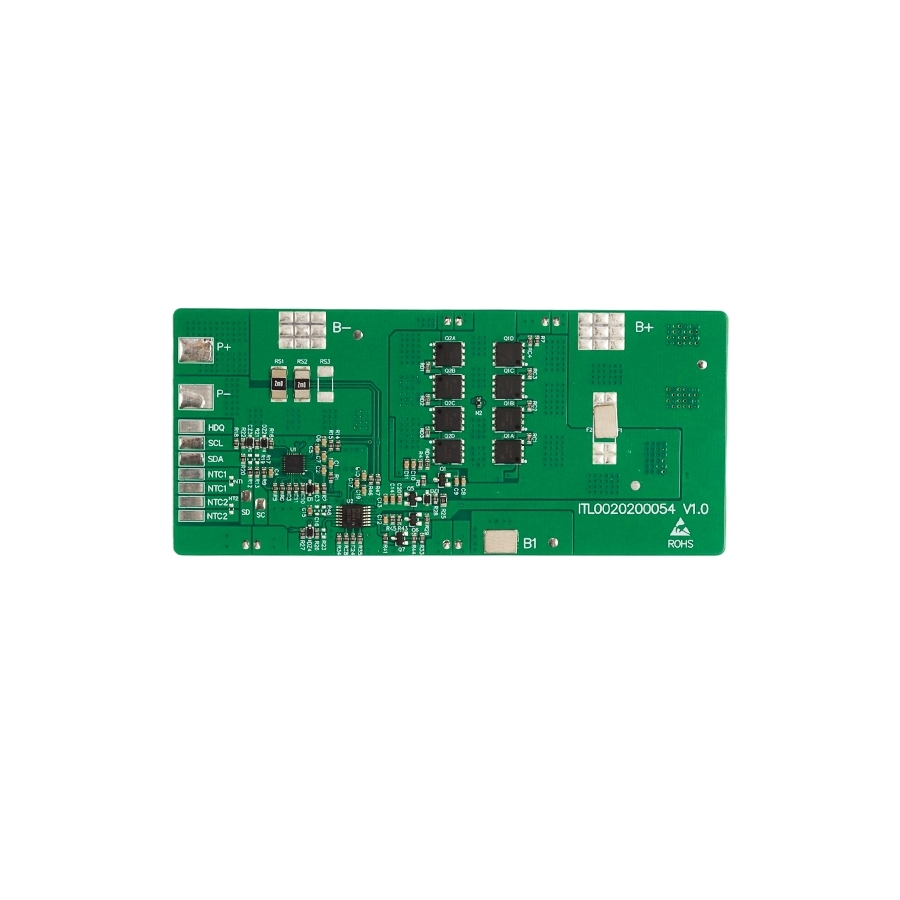

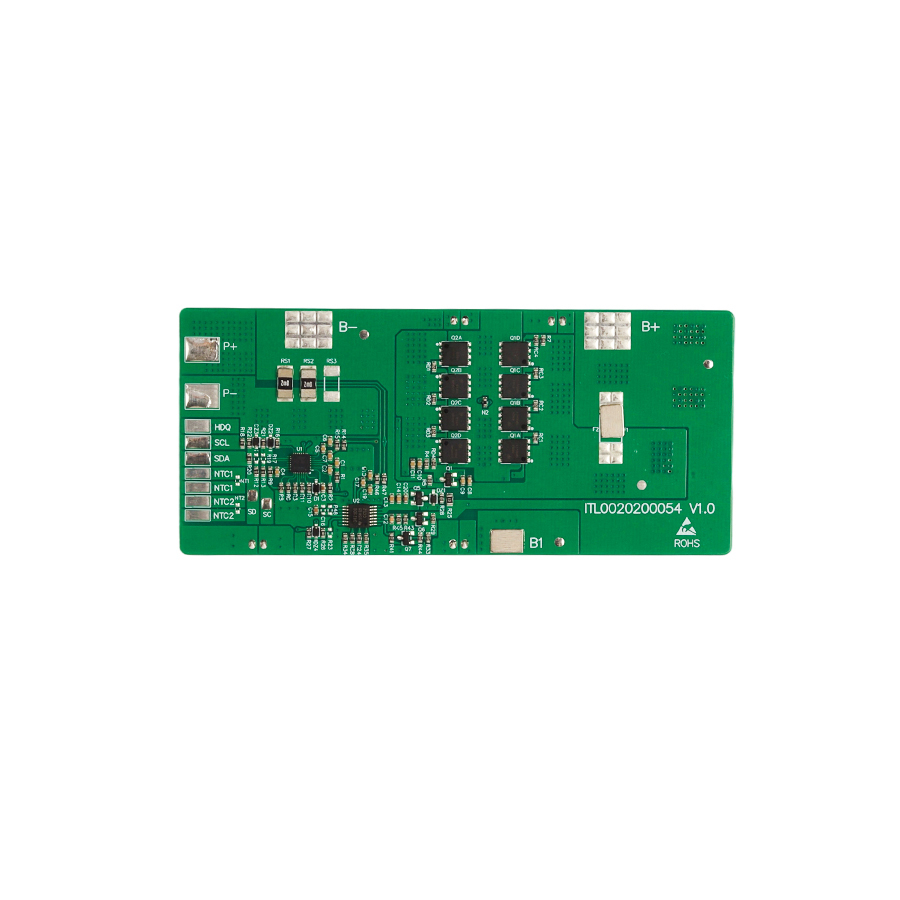

2S 20A Protection Board Smart BMS
| Place of Origin | China |
|---|---|
| Brand Name | BAKTH |
| Model Number | BAKTH-0020200054-01 |
| Minimum Order Quantity | 5PCS |
| Price | US$18.68 |
| Delivery Time | 10~15days |
| Payment Terms | T/T |
| Supply Ability | 1000PCS/Month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Compatible Interface | SMBUS/IIC | Over Charge Detection Voltage | 4.100V±0.050V (Adjustable) |
|---|---|---|---|
| Over Discharge Detection Voltage | 3.100V±0.050V (Adjustable) | Over Current Discharge | 25.0A±0.5A (Adjustable) |
| Discharging Temperature | -22~60℃ (Adjustable) | Charge Temperature | 0~45℃ (Adjustable) |
| Dimensions | 120 × 53.5 × 2.5 Mm |
Product Description
Product Overview:
The 2S (2-series) 20A Smart Battery Management System (BMS) represents a core component in managing and protecting low-voltage lithium-ion battery packs. With the proliferation of portable electronics, backup power systems, and small-scale electric mobility, the demand for reliable, compact, and intelligent protection boards has surged. This case study analyzes the functionality, adaptability, and implementation scenarios of a typical 2S 20A BMS, demonstrating its role in enhancing system safety, extending battery life, and enabling smart energy management across diverse applications.
Product Attributes
| Attribute | Value |
|---|---|
| Model Number | BAKTH-0020200054-01 |
| Series Supported | 2S |
| Continuous Discharge Current (A) | 20A |
| Balancing Type | Active Balancing / Passive Balancing (Optional) |
| Over charge detection voltage(Cell) | 4.100V±0.050V(Adjustable) |
| Over Discharge Detection Voltage(Cell) | 3.100V±0.050V(Adjustable) |
| Customization Available | Yes |
| Warranty | 12 months |
Key Features
-
Overcharge Protection: Cuts off the charging current when any cell voltage exceeds a safe upper limit (e.g., 4.25V for ternary lithium), preventing electrolyte decomposition and thermal runaway.
-
Over-discharge Protection: Disconnects the load when cell voltage falls below a minimum threshold (e.g., 2.5V-3.0V), protecting against capacity loss and cell reversal.
-
Overcurrent & Short-Circuit Protection: Detects and interrupts excessive discharge currents or short circuits, typically using high-speed MOSFETs rated for 20A continuous current, safeguarding the pack and connected devices from damage.
-
Temperature Monitoring: Integrates a Negative Temperature Coefficient (NTC) thermistor to monitor battery temperature. It can trigger protection or send alerts if temperatures exceed safe operating windows.
-
Cell Balancing: Many smart BMS units incorporate passive balancing, where a small resistor bleeds off excess charge from the higher-voltage cell in the pack during charging. This ensures both cells reach full charge simultaneously, improving capacity utilization and longevity. Advanced models may feature active balancing with greater efficiency.
