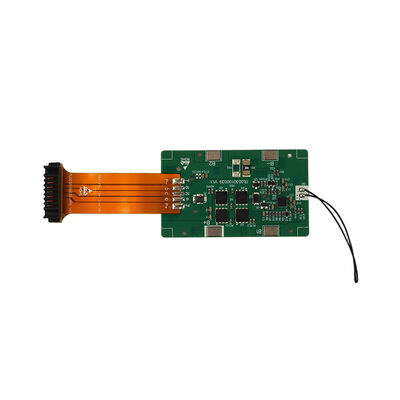

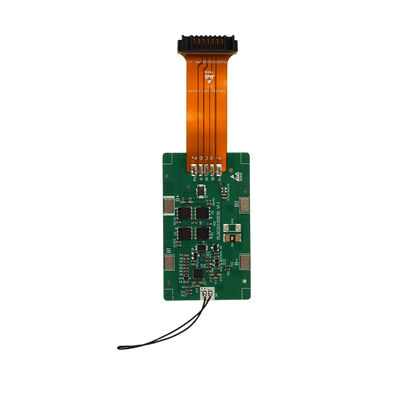

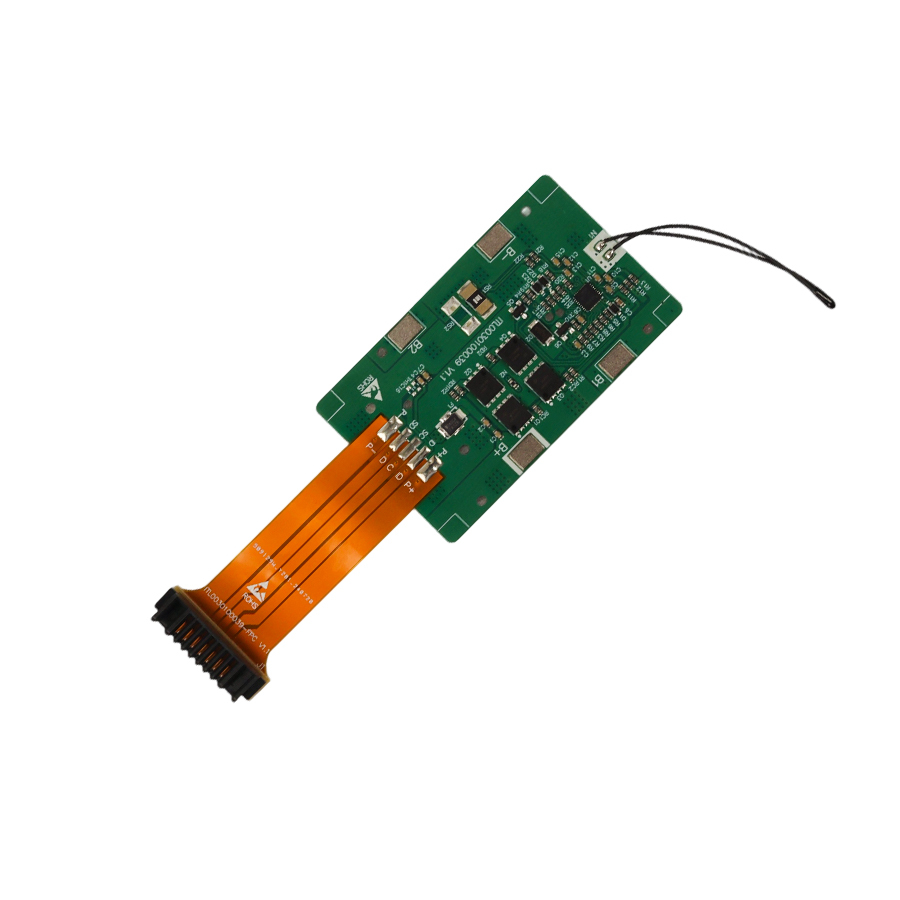

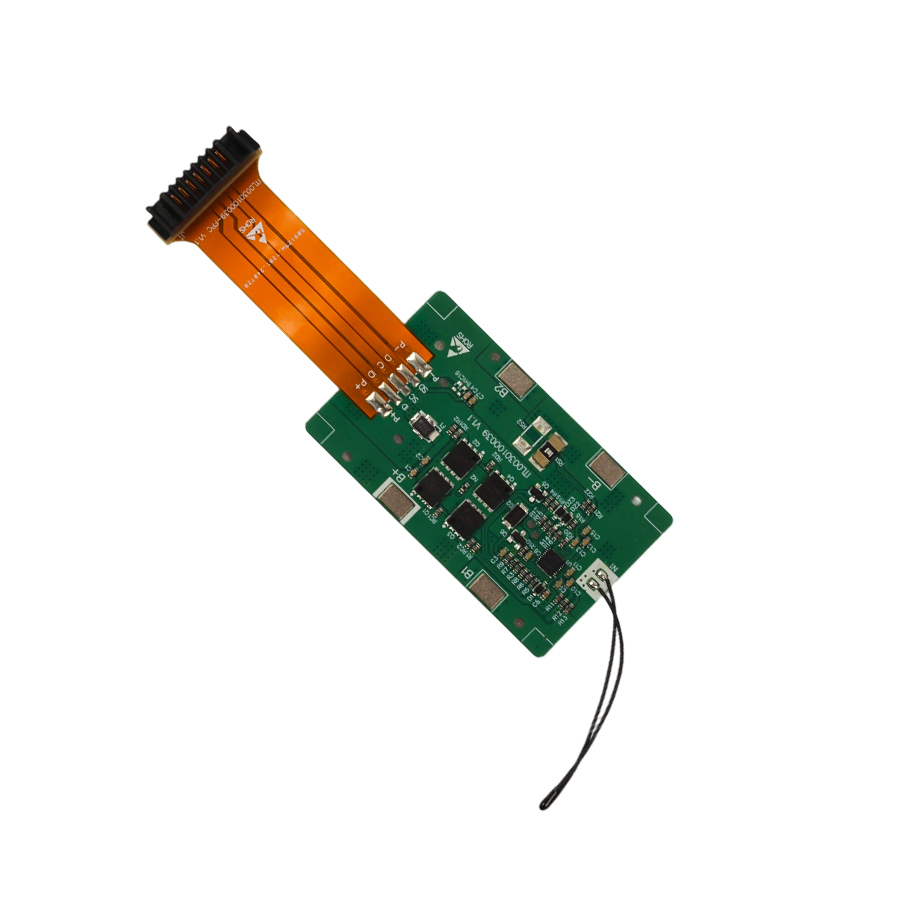

3S 8A Lithium Battery Smart Protection Board (SMBUS-Compatible)
| Place of Origin | China |
|---|---|
| Brand Name | BAKTH |
| Model Number | BAKTH-0030100039-01 |
| Minimum Order Quantity | 5PCS |
| Price | us$18.19 |
| Delivery Time | 10~12days |
| Payment Terms | T/T |
| Supply Ability | 1000PCS/Month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Model Number | BAKTH-0030100039-01 | Continuous Discharge Current | 8A |
|---|---|---|---|
| Overcharge Detection | 4.230V±0.050V (Adjustable) | Series Supported | 3S |
| Balancing Type | Active/Passive (Optional) | Overdischarge Detection | 2.800V±0.0250V (Adjustable) |
| Dimensions | 64.64 × 38.35 × 2.83 Mm |
Product Description
Product Overview
The 2S (2-series) 20A Smart Battery Management System (BMS) represents a core component in managing and protecting low-voltage lithium-ion battery packs. With the proliferation of portable electronics, backup power systems, and small-scale electric mobility, the demand for reliable, compact, and intelligent protection boards has surged. This case study analyzes the functionality, adaptability, and implementation scenarios of a typical 2S 20A BMS, demonstrating its role in enhancing system safety, extending battery life, and enabling smart energy management across diverse applications.
Technical Specifications
| Parameter | Value |
|---|---|
| Over Current Discharge | 9.0A±0.5A (Adjustable) |
| Over Current Charge | 8.0A±0.5A (Adjustable) |
| Discharging Temperature | -20~60℃ (Adjustable) |
| Charge Temperature | 0~45℃ (Adjustable) |
Key Features:
Overcharge Protection: Cuts off the charging current when any cell voltage exceeds a safe upper limit (e.g., 4.25V for ternary lithium), preventing electrolyte decomposition and thermal runaway.
-
Over-discharge Protection: Disconnects the load when cell voltage falls below a minimum threshold (e.g., 2.5V-3.0V), protecting against capacity loss and cell reversal.
-
Overcurrent & Short-Circuit Protection: Detects and interrupts excessive discharge currents or short circuits, typically using high-speed MOSFETs rated for 20A continuous current, safeguarding the pack and connected devices from damage.
-
Temperature Monitoring: Integrates a Negative Temperature Coefficient (NTC) thermistor to monitor battery temperature. It can trigger protection or send alerts if temperatures exceed safe operating windows.
-
Cell Balancing: Many smart BMS units incorporate passive balancing, where a small resistor bleeds off excess charge from the higher-voltage cell in the pack during charging. This ensures both cells reach full charge simultaneously, improving capacity utilization and longevity. Advanced models may feature active balancing with greater efficiency.
