13S 48V 60A Li-ion Battery BMS with Separate Charge/Discharge Ports for EV Power System
| Place of Origin | Dongguan China |
|---|---|
| Brand Name | BAKTH / Neutral / OEM |
| Certification | IEC62133 |
| Model Number | ITL0160600031-01 |
| Minimum Order Quantity | 10 Piece |
| Packaging Details | Industrial Paper Carton |
| Delivery Time | 3-4 weeks |
| Payment Terms | T/T |
| Supply Ability | 10000PCS/Month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Type Of Protective Board | 13 Series Charging And Discharging Ports | Over Charge Detection Voltage(Cell) | 4.250V±0.050V |
|---|---|---|---|
| Over Discharge Detection Voltage(Cell) | 2.500V±0.050V | Over Current Discharge | 75A-105A |
| Over Current Charge | 15A-25A | Discharging Temperature | -20~75℃ Adjustable |
| Charge Temperature | -5~55℃ Adjustable | Max.Discharge Current | 60A |
| Impedance | ≤10mΩ | Sample | Available |
| Length | 110± 0.3mm | Width | 60± 0.3mm |
| Height | 8.05± 0.3mm | ||
| Highlight | 13S 48V Li-ion BMS for EV,60A battery management system with separate ports,BMS PCB for power system warranty |
||
Product Description

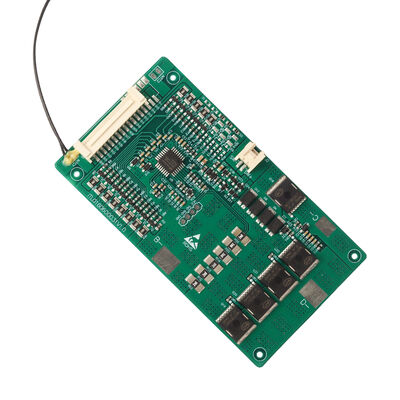

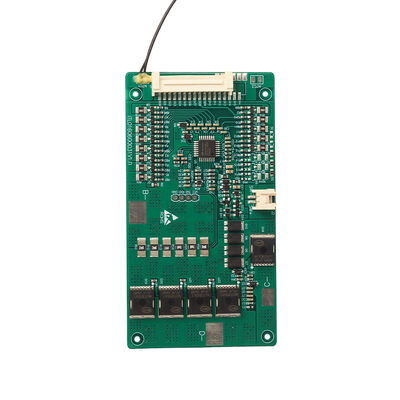

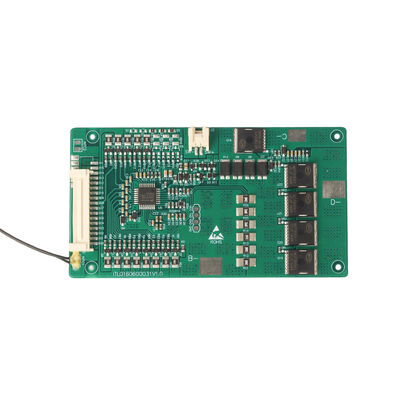

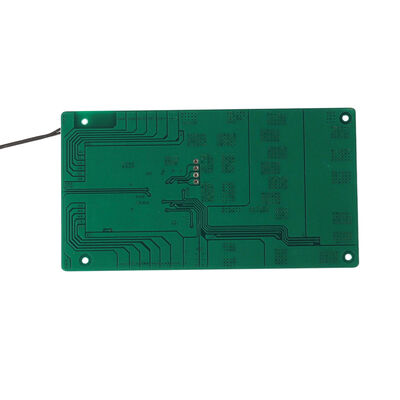

13S 48V 60A Li-ion Battery BMS with Separate Charge/Discharge Ports for EV Power System
This 13S lithium battery protection board is a high-performance safety module specifically developed for 13-series lithium-ion and lithium-polymer battery packs, featuring a maximum discharge current of 60A and dedicated charge-discharge ports. Designed to match 48V nominal voltage systems (3.7V per cell), it acts as an indispensable safety barrier for high-power devices, integrating robust power transmission capabilities with all-round protection mechanisms. Its core advantages and wide applicability make it a key component for 48V battery systems across industries.
Core Advantages
- 60A High-Current Stability: 60A max discharge current stably supports medium-high power loads without performance degradation under heavy-duty use.
- Independent Charge & Discharge Ports: Separated ports reduce circuit interference, enhance stability, and simplify wiring and daily maintenance.
- Full-Spectrum Safety Protection: Multi-layer safeguards (overcharge/over-discharge/over-current/short-circuit/over-temperature) fully eliminate potential risks.
- Premium & Reliable Components: High-precision IC and rugged MOSFETs enable real-time monitoring, rapid anomaly response, and automatic recovery.
Application Cases
Leveraging its high-current capacity and reliable protection, this board is widely used in the following scenarios:
- Personal Mobility Devices: Perfect for electric scooters/golf carts, ensuring safe operation under frequent start-stop and heavy loads.
- Energy Storage Systems: Suitable for portable power stations, protecting battery packs and extending their service life.
- DIY High-Power Projects: A reliable choice for engineers/hobbyists in custom high-power battery pack projects.
- Industrial & Small EVs: Ideal for 48V-powered small electric vehicles and industrial equipment, delivering stable protection.
About Us
Shenzhen BAKTH Technology Co., Ltd. was established in 2002. For 21 years, we've specialized in battery pack assembly and PCM/BMS design and production. Our 5,000-square-meter factory features automated production lines and SMT assembly capabilities.
Certifications
FAQ
What kind of certificate your battery pack owned?
ISO9001, ISO14001, UL, BIS, KC, USTC, CE, CB - our battery packs have reliable quality assurance.
Do you have MOQ?
No limitation - we offer competitive pricing based on order quantity. Sample orders are welcome to test our quality before bulk orders.
What's the warranty? How can we guarantee quality?
Standard warranty is 12 months (negotiable for special products). Our complete production process ensures quality before shipment.
What's the lead time?
Standard products: 3-4 weeks for samples (depending on cell availability), 5-8 weeks for bulk orders (varies by model and quantity).
Can we have our own Logo on the battery pack? Can you accept customized battery?
Yes - our professional R&D team can provide customized solutions according to your requirements.
