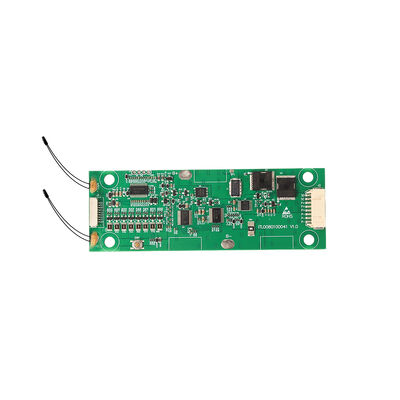

8S 10A Protection Circuit Board for Lithium Batteries with SMBUS
| Place of Origin | CHINA |
|---|---|
| Brand Name | BAKTH |
| Certification | IEC62133 |
| Model Number | BAKTH-0080200041 |
| Minimum Order Quantity | 5PCS |
| Price | USD10.45~USD14.5 |
| Packaging Details | Industrial Paper Carton |
| Delivery Time | 5-8 working days |
| Payment Terms | T/T |
| Supply Ability | 10000PCS/Month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Battery Type | Lithium Ion | Over Charge Detection Voltage(Cell) | 3.7V±0.05V |
|---|---|---|---|
| Over Discharge Detection Voltage(Cell) | 2.3V±0.05V | Compatible Interface | SMBUS |
| Over Current Discharge | 20±3A | Over Current Charge | 20±3A |
| Max Discharge Current | 10A | Dimension | 125*43*7.13 Mm(L*W*H) |
| Operating Temperature | -20~65℃ | ||
| Highlight | 8S lithium battery protection board,10A BMS circuit board,SMBUS battery management PCB |
||
Product Description
8S 10A Protection Circuit Board for Lithium Batteries with SMBUS
Product Specifications
| Attribute | Value |
|---|---|
| Battery Type | Lithium ion |
| Over charge detection voltage(Cell) | 3.7V±0.05V |
| Over Discharge Detection Voltage(Cell) | 2.3V±0.05V |
| Compatible Interface | SMBUS |
| Over Current Discharge | 20±3A |
| Over Current Charge | 20±3A |
| Max Discharge Current | 10A |
| Dimension | 125*43*7.13mm (L*W*H) |
| Operating Temperature | -20~65℃ |
Technical Details
| Model NO. | BAKTH-0080200041 |
| Compliant certification standards | IEC62133 |
| Type of Protective Board | 8S lithium battery protection board |
Key Features
- Over-voltage/current protection (<0.1s response)
- Multi-battery compatibility
- SMBUS interface support
- Comprehensive protection for lithium-ion batteries
Applications
- Lithium ion Battery Pack
- Electric Tools
- Power backup systems
- Portable electronic devices
