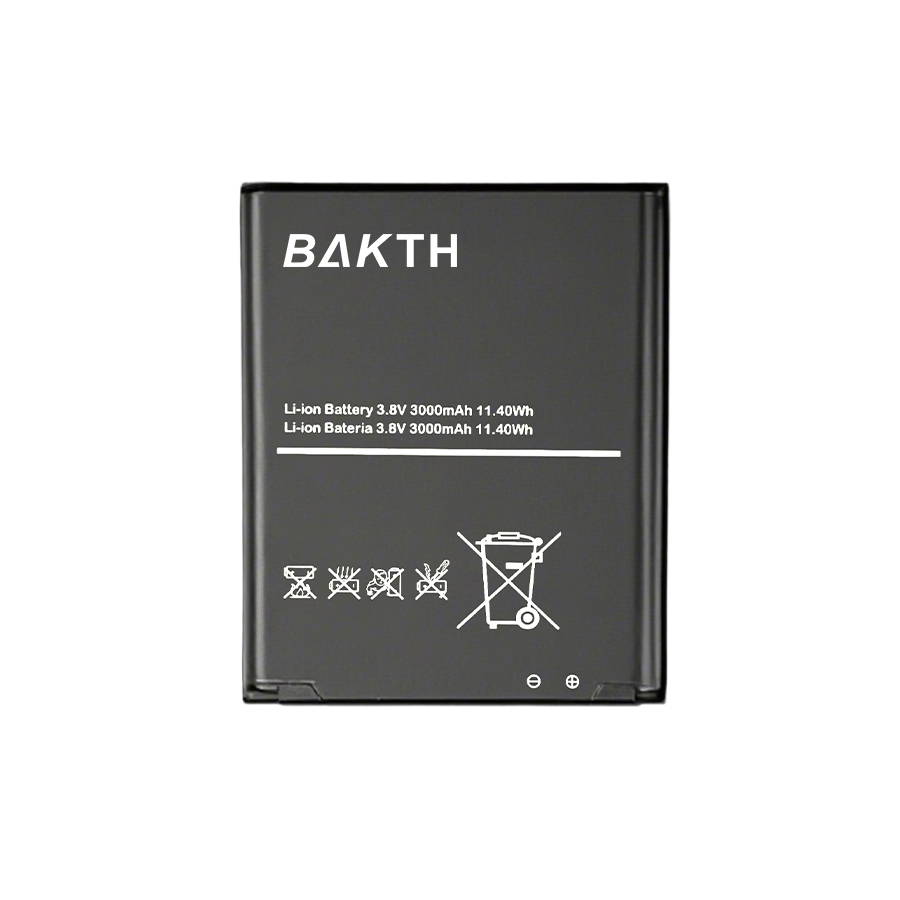

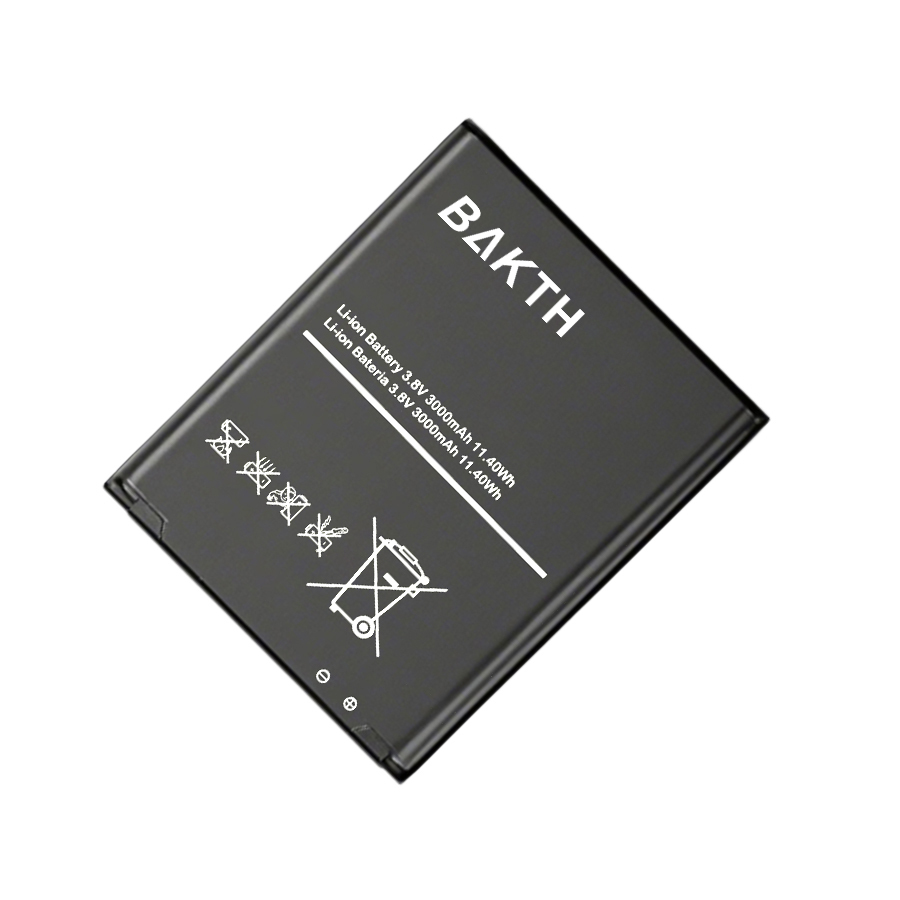

BAKTH-T10-635061-PACK, 3.8V, 3000mAh, 11.4Wh
| Place of Origin | China |
|---|---|
| Brand Name | BAKTH |
| Certification | UN38.3 |
| Model Number | BAKTH-T10-635061 |
| Minimum Order Quantity | 2PCS |
| Price | US$4.85 |
| Packaging Details | Carton |
| Delivery Time | 15~20days |
| Payment Terms | T/T |
| Supply Ability | 100000PCS/Month |
Product Details
| Voltage | 3.8V | Discharging Temp | -20℃~45℃ |
|---|---|---|---|
| Charge Current | 1C | Chemistry | Li-ion |
| Chargeable | Yes | Working Temperature | 0℃ ~45℃ |
| Capacity | 3000mAh | ||
| Highlight | 3.8V lithium ion battery pack,3000mAh rechargeable battery pack,11.4Wh lithium ion battery |
||
Product Description
Product Overview:
The BAKTH-T10-635061-PACK is a compact, high-energy-density lithium-ion battery pack designed for portable electronic devices. With a nominal voltage of 3.8V and a capacity of 3000mAh, it delivers 11.4Wh of total energy, striking a balance between runtime and portability. Its prismatic form factor (dimensions inferred from the "635061" code: approximately 63mm × 50mm × 6.1mm) and lightweight design (around 45g) make it ideal for integration into slim devices where space is at a premium.
Description:
| Model NO. | BAKTH-T10 |
| Brand Name | BAKTH / Neutral / OEM |
| Compliant certification standards | UN38.3 / RoHS compliant |
| Discharging temperature | -20~60℃ |
| Electrical Performance | |
| Nominal Voltage | 3.8V |
| Nominal Capacity | 3000mAh |
| Power Capacity | 11.4Wh |
| Max. charging voltage | 4.35V |
| Cut-off voltage | 3.0V |
| Dimension | |
| Length | 65.6mm |
| Width | 53.6mm |
| Height | 6.85mm |
| Weight | 60g |
Safety and Reliability
Equipped with a built-in Protection Circuit Module (PCM), the pack offers comprehensive safeguards against overcharge, over-discharge, short circuits, and overcurrent. It adheres to strict safety standards, including UL and UN38.3, ensuring compliance with global regulatory requirements. The battery is rated for over 300 charge-discharge cycles while retaining at least 80% of its original capacity, providing long-term reliability for daily use.
For optimal performance, it is recommended to charge the battery using a constant current/constant voltage (CC/CV) charger with a 4.35V cutoff voltage. The standard charging current is 0.2C (600mA), though it supports fast charging at up to 0.5C (1.5A) for quicker top-ups. The discharge cutoff voltage is 3.0V, preventing deep discharge that could damage the cell structure.
Application and Compatibility
This battery pack is versatile, with applications spanning consumer electronics and industrial sectors:
- Consumer devices: Smartphones, portable audio players, handheld gaming consoles, and wireless earbud cases
- Industrial tools: Handheld scanners, diagnostic equipment, and small robotic systems
- Backup power: Emergency lighting, portable chargers, and IoT sensors
Its customizable connector options (e.g., JST, Molex) and compact size make it easy to integrate into custom device designs. OEMs can request tailored wire lengths, labeling, and packaging to meet specific product requirements.
