Dual-Board 3S Li-ion Battery Protection Board BAKTH-ITL0030050167-01 with NTC Sensor
| Place of Origin | Dongguan China |
|---|---|
| Brand Name | BAKTH / Neutral / OEM |
| Certification | IEC62133 |
| Model Number | BAKTH-ITL0030050167-01 |
| Minimum Order Quantity | 10 Piece |
| Packaging Details | Industrial Paper Carton |
| Delivery Time | 3-4 weeks |
| Payment Terms | T/T |
| Supply Ability | 10000PCS/Month |
Product Details
| Type Of Protective Board | 3S Lithium Battery Protection Board | Over Charge Detection Voltage(Cell) | 4.230V±0.025V |
|---|---|---|---|
| Over Discharge Detection Voltage(Cell) | 2.700V±0.025V | Over Current Discharge | 5.0A±0.5A |
| Over Current Charge | 4.0A±0.5A | Discharging Temperature | 0~50℃ |
| Charge Temperature | -18~55℃ | Max. Discharge Current | 4A |
| Max. Charge Current | 3A | Dimension | A: 64*57.6*1.2mm B: 55*37.6*1.2mm |
| Sample | Available | Product Solution | BQ4050+AON6354 |
| Compatibleinterface | SMBUS | ||
| Highlight | 3S Li-ion Battery Protection Board,Dual-Board BMS PCB with NTC,Battery Protection Circuit with Sensor |
||
Product Description

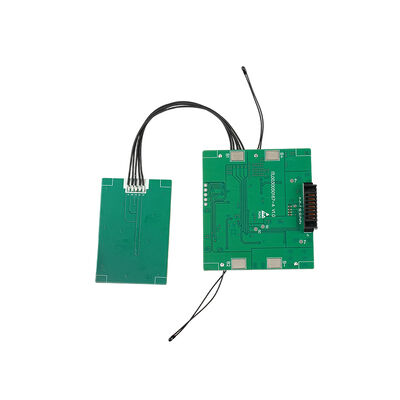

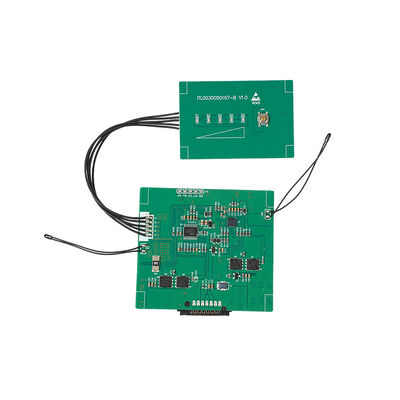

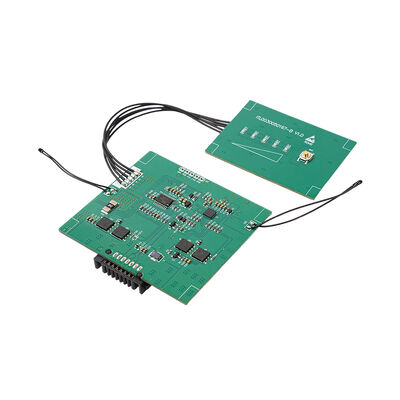

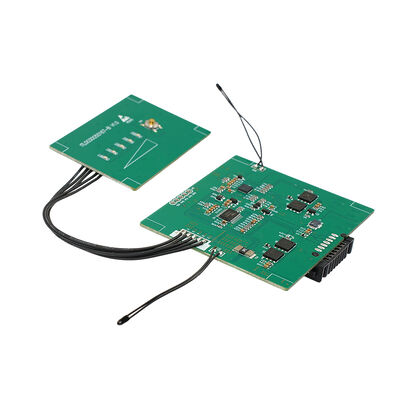

Dual-Board 3S Li-ion Battery Protection Board BAKTH-ITL0030050167-01 with NTC Sensor
The BAKTH-ITL0030050167-01 (PCB Marking: ITL0030050167-B V1.0) is a high-reliability battery management system (BMS) specially designed for 3-series (3S) 3.6V/3.7V lithium-ion/polymer batteries. Adopting a split-type dual-board modular structure with dedicated sampling cables and an external NTC temperature probe, this BMS provides comprehensive safety protection for small-to-medium power 3S lithium battery packs, making it an ideal solution for a wide range of portable and consumer electronic devices.
Core Advantages
- Full-Suite Safety Protection: Complete protection against overcharge, over-discharge, overcurrent, short circuit, and over-temperature, maximizing battery safety and lifespan.
-
Reliable 3S Configuration Compatibility: Specifically designed for 3-series lithium-ion battery packs, perfectly matching the voltage requirements of 3S battery systems (nominal 11.1V for Li-ion) and ensuring seamless integration.
- Cell Balancing for Longer Life: Built-in cell balancing function eliminates cell inconsistency, ensuring each 3S cell charges and discharges uniformly, improving battery pack efficiency and extending its overall service life.
- Flexible Customization: Adjustable overcurrent thresholds and OEM/ODM options to match your specific product requirements.
- Split-Type Dual-Board Layout: The main control board and auxiliary sampling board are connected via a dedicated flat cable, offering flexible installation to adapt to various battery compartment structures. This modular design solves the space limitation problem of integrated BMS, improving the space utilization of end devices.
About Us
Shenzhen BAKTH Technology Co., Ltd. was established in 2002. For 21 years, we've specialized in battery pack assembly and PCM/BMS design and production. Our 5,000-square-meter factory features automated production lines and SMT assembly capabilities.
Certifications
FAQ
What kind of certificate your battery pack owned?
ISO9001, ISO14001, UL, BIS, KC, USTC, CE, CB - our battery packs have reliable quality assurance.
Do you have MOQ?
No limitation - we offer competitive pricing based on order quantity. Sample orders are welcome to test our quality before bulk orders.
What's the warranty? How can we guarantee quality?
Standard warranty is 12 months (negotiable for special products). Our complete production process ensures quality before shipment.
What's the lead time?
Standard products: 3-4 weeks for samples (depending on cell availability), 5-8 weeks for bulk orders (varies by model and quantity).
Can we have our own Logo on the battery pack? Can you accept customized battery?
Yes - our professional R&D team can provide customized solutions according to your requirements.
