Custom 3400mah Drone Lithium Polymer Lithium Ion Batteries Pack for Multiple Application
| Place of Origin | Guangdong, China |
|---|---|
| Brand Name | BAKTH/OEM/ODM |
| Model Number | BAKTH-103649P-1S-2 |
| Minimum Order Quantity | 5 pieces |
| Price | CN¥28.70/pieces 5-499 pieces |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Battery Size | 103649 | Application | Toys, Power Tools, Consumer Electronics, Golf Carts, Electric Bicycles/Scooters, Electric Vehicles |
|---|---|---|---|
| Weight | About 60g | Type | LI-lon |
| Max Charge Voltage | 4.2V | Discharge Cut Off Voltage | 2.75V |
| Standard Charge Current | 0.2C | Max Charge Current | 1C |
| Charging Mode | CC/CV | Charging Temperature | 0-45℃ |
| Discharging Temperature | -20-60℃ | Warranty | 12 Months |
| Anode Material | LCO | The Charging Ratio | 0.5C |
| The Discharge Rate | 1C | Storage Type | 0-45℃ |
| Electric Energy | 8.88 Wh | ||
| Highlight | 3400mah drone lithium battery,custom lithium ion battery pack,drone battery pack with warranty |
||
Product Description
Custom 3400mAh Drone Lithium Polymer Battery Pack
Multi-Application Power Solution
This high-performance 3400mAh lithium polymer battery pack is designed for diverse applications including drones, power tools, consumer electronics, golf carts, electric bicycles/scooters, and electric vehicles.
Technical Specifications
| Attribute | Value |
|---|---|
| Battery Size | 103649 |
| Type | Li-ion |
| Nominal Capacity | 3400mAh |
| Nominal Voltage | 3.7V |
| Electric Energy | 8.88 Wh |
| Weight | Approximately 60g |
| Dimensions | Approximately 10.5 × 37 × 52(mm) |
Performance Characteristics
Voltage Range
Max Charge: 4.2V
Discharge Cut-off: 2.75V
Discharge Cut-off: 2.75V
Charge Parameters
Standard: 0.2C
Max: 1C
Mode: CC/CV
Max: 1C
Mode: CC/CV
Discharge Parameters
Standard: 0.2C
Max: 1C
Max: 1C
Temperature Range
Charging: 0-45℃
Discharging: -20-60℃
Discharging: -20-60℃
Cycle Life
300 cycles
Internal Resistance
≤210 mΩ
Storage & Maintenance
- Short-term (≤1 month): 45-60℃
- Medium-term (≤3 months): 25-45℃
- Long-term (≤12 months): -20-25℃
- Maintain ≤60% relative humidity (non-condensing)
- Recharge every 6 months for optimal storage
Additional Features
Construction
Automated production line
High-quality materials
High-quality materials
Protection
Includes PCB/PCM protection
Connector
2P connector
Warranty
12 months

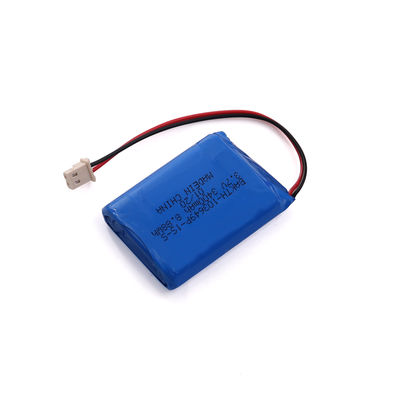

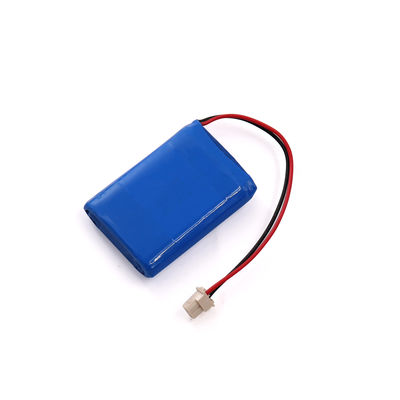

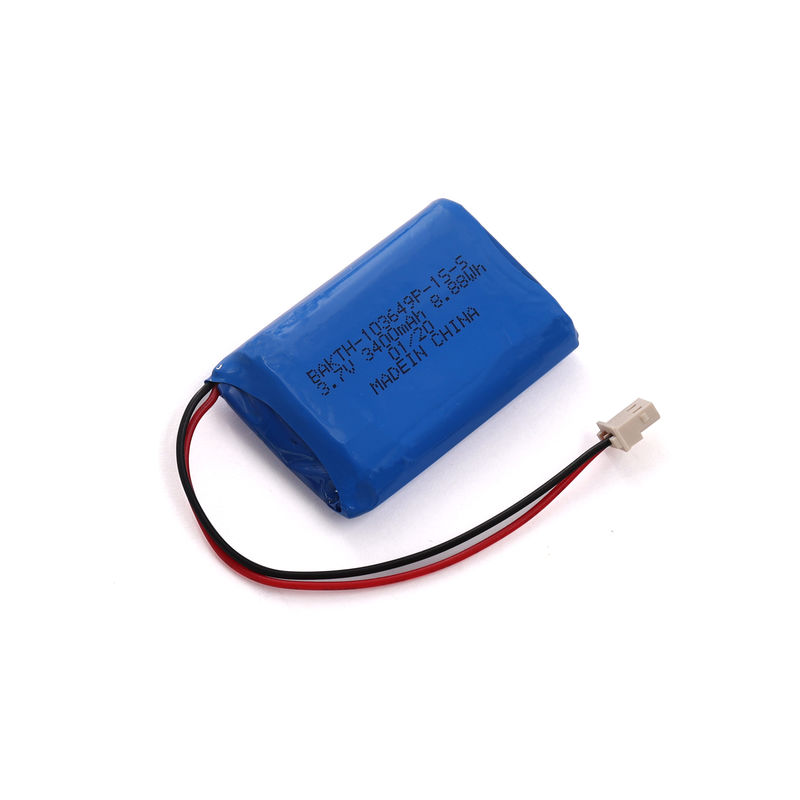

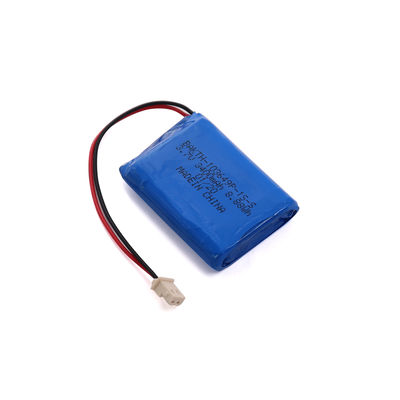

Product Images
