Power Tool Batteries BAKTH-523450PV-1S1P 3.7V 950mAh Real Capacity Lithium Polymer Battery Pack

Place of Origin Guangdong, China
Brand Name BAKTH
Model Number BAKTH-523450PV-1S1P
Minimum Order Quantity 2 pieces
Price CN¥19.83/pieces 2-99 pieces

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Battery Size 523450 Battery Type Solid State
Cycle Life 300 Cycles, >300 Cycles Cathode Materials LiCoO2
Application Toys, Power Tools, Home Appliances, Consumer Electronics, Digital Products / Bluetooth / Smart Watch / GPS Weight About 20g, About 20g
Operating Temperature(℃) -20~60℃ Nominal Capacity 950mAh
Nominal Voltage 3.7V Max Charge Voltage 4.2V
Discharge Cut Off Voltage 2.75V Standard Charge Current 0.2C
Charging Mode CC/CV Internal Resistance ≤210
Dimension About 5.5*34.5*52(mm)
Highlight

1s1p li polymer battery pack

,

3.7v li polymer battery pack

Leave a Message
Product Description
Power Tool Batteries BAKTH-523450PV-1S1P 3.7V 950mAh Real Capacity Lithium Polymer Battery Pack
Product Specifications
Attribute Value
Battery Size 523450
Battery Type Solid state
Cycle Life 300 cycles, >300 cycles
Cathode Materials LiCoO2
Application Toys, Power Tools, Home Appliances, Consumer Electronics, Digital Products / Bluetooth / Smart Watch / GPS
Weight about 20g
Operating Temperature -20~60℃
Nominal Capacity 950mAh
Nominal Voltage 3.7V
Max Charge Voltage 4.2V
Discharge Cut Off Voltage 2.75V
Standard Charge Current 0.2C
Charging Mode CC/CV
Internal Resistance ≤210
Dimension about 5.5*34.5*52(mm)
Product Features
Production Automatic production line with high quality materials
Nominal capacity 950mAh
Nominal voltage 3.7V
Max charge voltage 4.2V
Discharge cut off voltage 2.75V
Standard charge current 0.2C
Max charge current 1C
Standard discharge current 0.2C
Max discharge current 1C
Charging mode CC/CV
Internal resistance ≤210
Cycle life >300 cycles
Charging Temperature 0~45℃
Discharging Temperature -20 ~ 60℃
Storage temperature ≤1 month: 45~60℃
≤3 months: 25~45℃
≤12 months: -20~25℃
≤60%RH Recharge every 6 months
Humidity Range 0~85% (non-condensing)
Dimension about 5.5*34.5*52(mm)
Weight about 20g
Brand BAKTH / Neutral / OEM
Warranty 12 Months
PCB/PCM yes
Connector 3P connector
Battery type Li-ion
Rechargeable Yes
Product Images

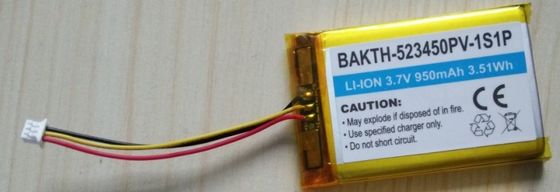

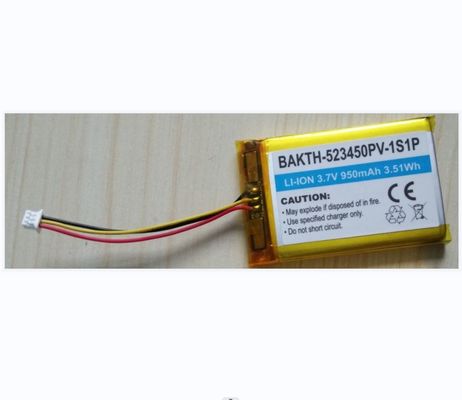

Power Tool Batteries BAKTH-523450PV-1S1P 3.7V 950mAh Real Capacity Lithium Polymer Battery Pack 0 Power Tool Batteries BAKTH-523450PV-1S1P 3.7V 950mAh Real Capacity Lithium Polymer Battery Pack 1 Power Tool Batteries BAKTH-523450PV-1S1P 3.7V 950mAh Real Capacity Lithium Polymer Battery Pack 2 Power Tool Batteries BAKTH-523450PV-1S1P 3.7V 950mAh Real Capacity Lithium Polymer Battery Pack 3
