Electric Toy Lithium Batteries 18650-4S1P-3M 14.4V 2600mAh Li-ion Battery Pack
| Place of Origin | Guangdong, China |
|---|---|
| Brand Name | BAKTH |
| Model Number | 18650-4S1P-3M 14.4V 2600mAh |
| Minimum Order Quantity | 2 pieces |
| Price | CN¥104.55/pieces 2-99 pieces |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Max Load Quantity(cells) | 4 | Battery Type | Solid State |
|---|---|---|---|
| Cycle Life | 500 Cycles | Dimension (L*W*H) | About 75*38*38(mm) |
| Application | Consumer Electronics, Power Tools, Toys, Home Appliances | Weight | About 200g |
| Operating Temperature(℃) | -20~60℃ | Cathode Materials | LiCoO2 |
| Size | 75*38*38(mm) | Max Charge Voltage | 16.8V |
| Discharge Cut Off Voltage | 11V | Max Charge Current | 1C |
| Max Dischrge Current | 1C | Charging Mode | CC/CV |
| Discharging Temperature | -20 ~ 60℃ | Connector | 3P Connector |
| The Charging Ratio | 0.5C | The Discharge Rate | 1C |
| Highlight | 18650 lithium ion battery pack,14.4v lithium ion battery pack |
||
Product Description

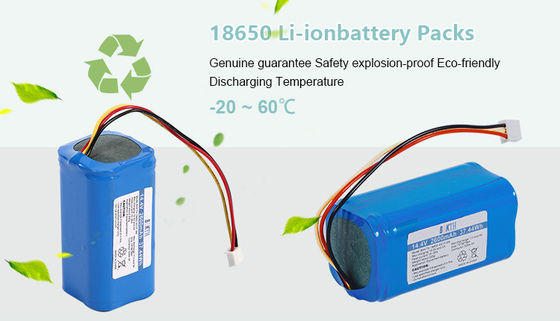

Electric Toy Lithium Batteries 18650-4S1P-3M 14.4V 2600mAh Li-ion Battery Pack

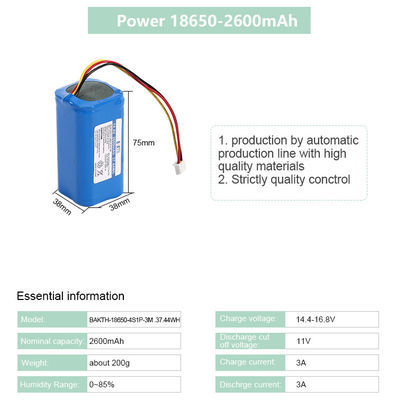

Product Specifications
Battery Type
Solid state Li-ion
Nominal Voltage
14.4V
Nominal Capacity
2600mAh
Cycle Life
500 cycles
Dimensions
75×38×38(mm)
Weight
200g
Technical Parameters
| Max Charge Voltage | 16.8V |
| Discharge Cut-off Voltage | 11V |
| Max Charge Current | 1C |
| Max Discharge Current | 1C |
| Charging Mode | CC/CV |
| Operating Temperature | -20℃ to 60℃ |
| Connector Type | 3P connector |
| Cathode Materials | LiCoO2 |

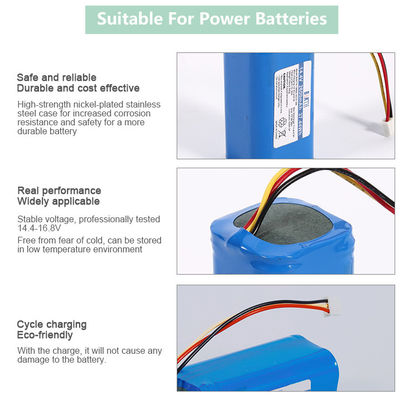

Key Features
- Produced using automated production line with high-quality materials
- Strict quality control measures implemented
- 12-month warranty period
- Samples available for testing
- Rechargeable design with 500 cycle life
Applications
This battery pack is ideal for various applications including consumer electronics, power tools, toys, and home appliances.
Storage Conditions
| ≤1 month | 45-60℃ |
| ≤3 months | 25-45℃ |
| ≤12 months | -20-25℃ |
| Humidity | ≤60% RH (non-condensing) |
| Maintenance | Recharge every 6 months during storage |

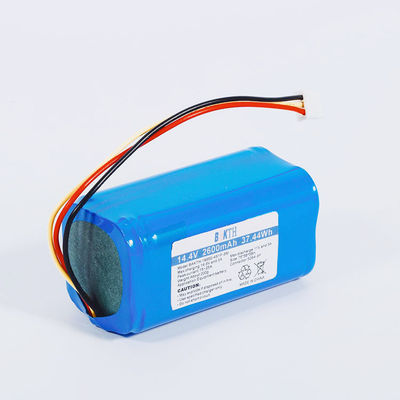

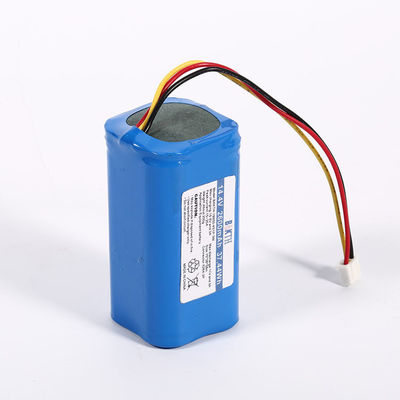

Product Images
