Customized Deep Cycles 18650 10S4P 36V 10Ah Lithium Ion Battery for Portable Power Station
| Place of Origin | Guangdong, China |
|---|---|
| Brand Name | BAKTH |
| Model Number | 18650 10S4P 36V 10Ah |
| Price | CN¥706.57/pieces 1-9 pieces |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Max Load Quantity(cells) | 40 | Battery Type | Solid State |
|---|---|---|---|
| Cycle Life | 300 Cycles | Dimension (L*W*H) | 80*76*190 |
| Application | Power Tools, Consumer Electronics, Electric Power Systems, Electric Bicycles/Scooters | Weight | 2.2Kg |
| Operating Temperature(℃) | 0~45℃ | Cathode Materials | LiCoO2 |
| Battery Type | 18650 Rechargeable Li-ion | Type | Li-Ion |
| Max Charge Voltage | 42V | Discharge Cut Off Voltage | 27.5V |
| Charging Temperature | 0~45℃ | Charging Mode | CC/CV |
| Discharging Temperature | -20 ~ 60℃ | Warranty | 12 Months |
| Applied Field | E-bike, Power Tools | Anode Material | LCO |
| Highlight | customized lithium ion battery pack,18650 lithium ion battery pack |
||
Product Description

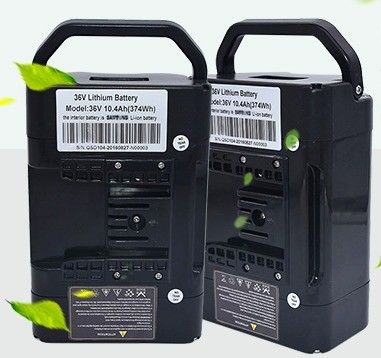

Customized Deep Cycles 18650 10S4P 36V 10Ah Lithium Ion Battery
Key Specifications
Battery Type
18650 Rechargeable Li-ion (Solid state)
Nominal Capacity
10.4Ah
Nominal Voltage
36V
Cycle Life
300 cycles (≥80% capacity)

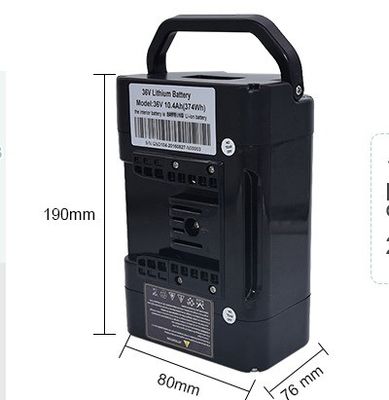

Dimensions
80×76×190 mm
Weight
2.2Kg

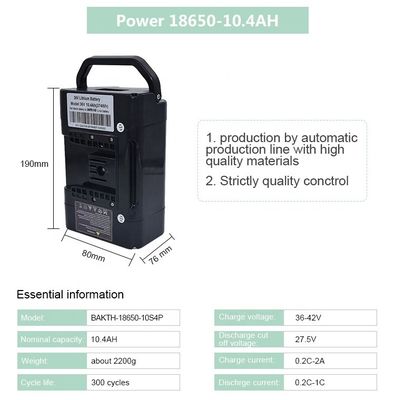

Technical Parameters
| Parameter | Value |
|---|---|
| Max Charge Voltage | 42V |
| Discharge Cut-off Voltage | 27.5V |
| Standard Charge Current | 0.2C |
| Max Charge Current | 2A |
| Max Discharge Current | 1C |
| Charging Mode | CC/CV |
| Operating Temperature | 0~45℃ |
| Discharging Temperature | -20 ~ 60℃ |

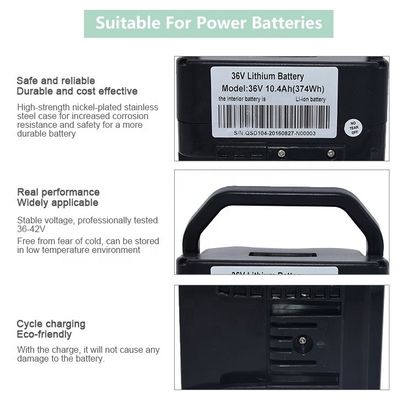

Product Features
- Manufactured using automated production line with high quality materials
- Strict quality control throughout production process
- Includes PCB/PCM protection circuit
- Available in BAKTH brand or OEM neutral packaging
- 12-month warranty coverage
Applications
Ideal for various power applications including:
- Electric bicycles/scooters
- Power tools
- Consumer electronics
- Electric power systems
- Portable power stations
Certifications
UN38.3
UL1642
IEC62133
Product Images
