Smart 8S 25.6V 10A SMB Intelligent LiFePO4 Battery BMS for Solar System Power Backup
| Place of Origin | Dongguan China |
|---|---|
| Brand Name | BAKTH / Neutral / OEM |
| Certification | IEC62133/UL2054 |
| Model Number | ITL0080200041 -01 |
| Minimum Order Quantity | 2 Piece |
| Price | USD 18-30 /PC |
| Packaging Details | Industrial Paper Carton |
| Delivery Time | 3-4 weeks |
| Payment Terms | T/T |
| Supply Ability | 10000PCS/Month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Type | 8-series SMB Intelligent Battery Protection Board | Compatible Interface | SMBUS |
|---|---|---|---|
| Battery Type | LiFe-PO4 | Over Charge Detection Voltage(Cell) | 3.700V±0.050V Adjustable |
| Over Discharge Detection Voltage(Cell) | 2.300V±0.020V Adjustable | Over Current Discharge | 20A±3A Adjustable |
| Over Current Charge | 20A±3A Adjustable | Max.Discharge Current | 10A |
| Discharging Temperature | -20~65℃ Adjustable | Charge Temperature | -5~60℃ Adjustable |
| Dimension | 125*43*7.2 Mm | Sample | Available |
| Highlight | 25.6V LiFePO4 battery BMS,10A solar power backup BMS,SMB intelligent BMS for solar |
||
Product Description

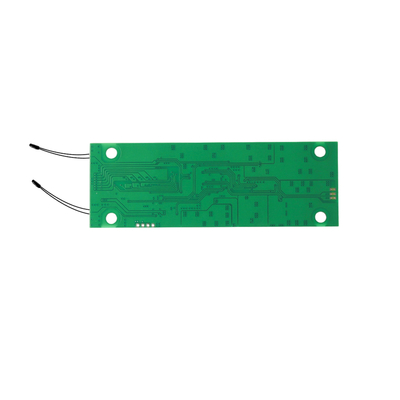

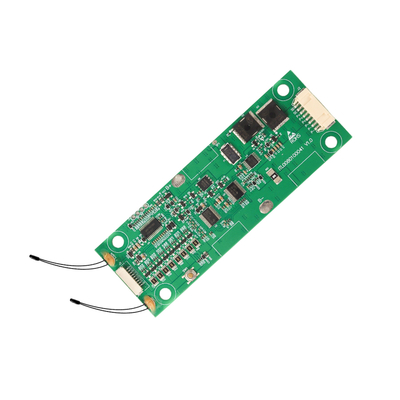

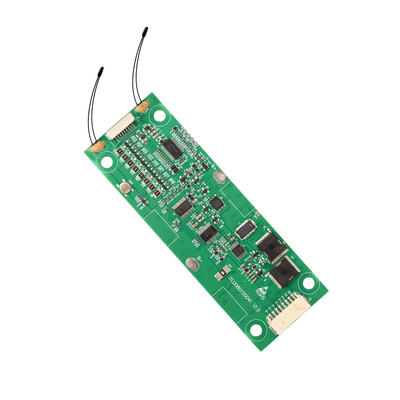

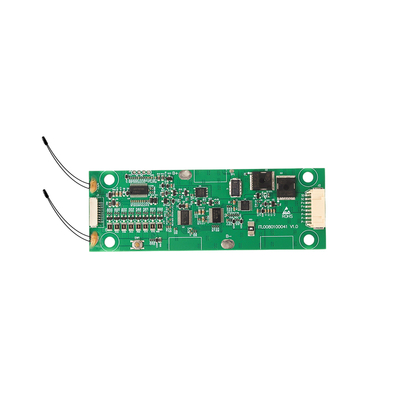

Smart 8S 25.6V 10A SMB Intelligent LiFePO4 Battery BMS for Solar System Power Backup
The ITL0080200041-01 is a specialized intelligent protection board exclusively engineered for 8-cell series (8S) Lithium Iron Phosphate (LiFePO4) battery packs, featuring a maximum discharge current of 10A and integrated SMB (System Management Bus) smart functionality. Optimized for medium-high voltage LiFePO4 systems (nominal 25.6V, full charge 29.2V), it merges LiFePO4-specific safety safeguards with real-time data monitoring, making it ideal for smart energy storage, industrial IoT devices, and portable professional tools that demand reliable, data-driven battery management.
8S LiFePO4-Specific Protection & 10A Reliability
Calibrated to LiFePO4’s unique electrochemical traits and 8-cell dynamics, the board delivers targeted protection aligned with 10A medium-power demands:
Overcharge Protection: Triggers at 3.7V per cell (total 29.6V for 8S packs), instantly cutting charging current to prevent LiFePO4 cell degradation—critical for 8S systems where voltage imbalance across eight cells accelerates capacity loss.
Undervoltage Protection: Shuts down discharge at 2.3V per cell (total 18.4V for 8S packs), avoiding irreversible damage to LiFePO4 cells that are sensitive to deep discharge, especially during 10A sustained operation.
10A Overcurrent & Short-Circuit Protection: Blocks currents exceeding 10A (max discharge) or 30A (peak surge), shielding the 8S LiFePO4 pack and connected smart devices from burnout during startup or accidental short circuits.
8-Cell Active Balancing: Automatically equalizes voltage across all eight LiFePO4 cells during charging, addressing the chemistry’s sensitivity to uneven charge and extending battery lifespan by up to 40% vs. unbalanced systems while maintaining stable 10A discharge.
Ideal Application Scenarios
This board is tailored for 8S lithium devices requiring 15A peak discharge:
- Smart Energy Storage: 8S LiFePO4 portable power stations (for camping or home backup) with app connectivity to display SOC and health data.;
-
Industrial IoT: 8S-powered environmental sensors, asset trackers, or smart controllers (needing real-time battery data for remote management).
-
Professional Tools: 8S cordless LiFePO4 drills, grinders, or handheld vacuums (with fault alerts and SOC display via SMB-connected apps).
- Medical & Auxiliary Devices: Portable oxygen concentrators or emergency power supplies (relying on SMB alerts for patient safety and device reliability).ddddddd
About Us
Shenzhen BAKTH Technology Co., Ltd. was established in 2002. For 21 years, we've specialized in battery pack assembly and PCM/BMS design and production. Our 5,000-square-meter factory features automated production lines and SMT assembly capabilities.
Certifications
FAQ
What kind of certificate your battery pack owned?
ISO9001, ISO14001, UL, BIS, KC, USTC, CE, CB - our battery packs have reliable quality assurance.
Do you have MOQ?
No limitation - we offer competitive pricing based on order quantity. Sample orders are welcome to test our quality before bulk orders.
What's the warranty? How can we guarantee quality?
Standard warranty is 12 months (negotiable for special products). Our complete production process ensures quality before shipment.
What's the lead time?
Standard products: 3-4 weeks for samples (depending on cell availability), 5-8 weeks for bulk orders (varies by model and quantity).
Can we have our own Logo on the battery pack? Can you accept customized battery?
Yes - our professional R&D team can provide customized solutions according to your requirements.
