BAKTH-635061-451P-5
| Place of Origin | China |
|---|---|
| Brand Name | BAKTH |
| Certification | UN38.3 |
| Model Number | BAKTH-635061-451P-5 |
| Minimum Order Quantity | 2PCS |
| Price | US$29.6 |
| Packaging Details | Carton |
| Delivery Time | 15~20days |
| Payment Terms | T/T |
| Supply Ability | 100000PCS/Month |
Product Details
| Voltage | 15.2V | Cut-off Voltage | 11.2V |
|---|---|---|---|
| Discharging Temp | 0℃~45℃ | Charge Current | 0.5C |
| Chargeable | Yes | Working Temperature | 0℃ ~45℃ |
| Capacity | 3000mAh |
Product Description
Product Overview:

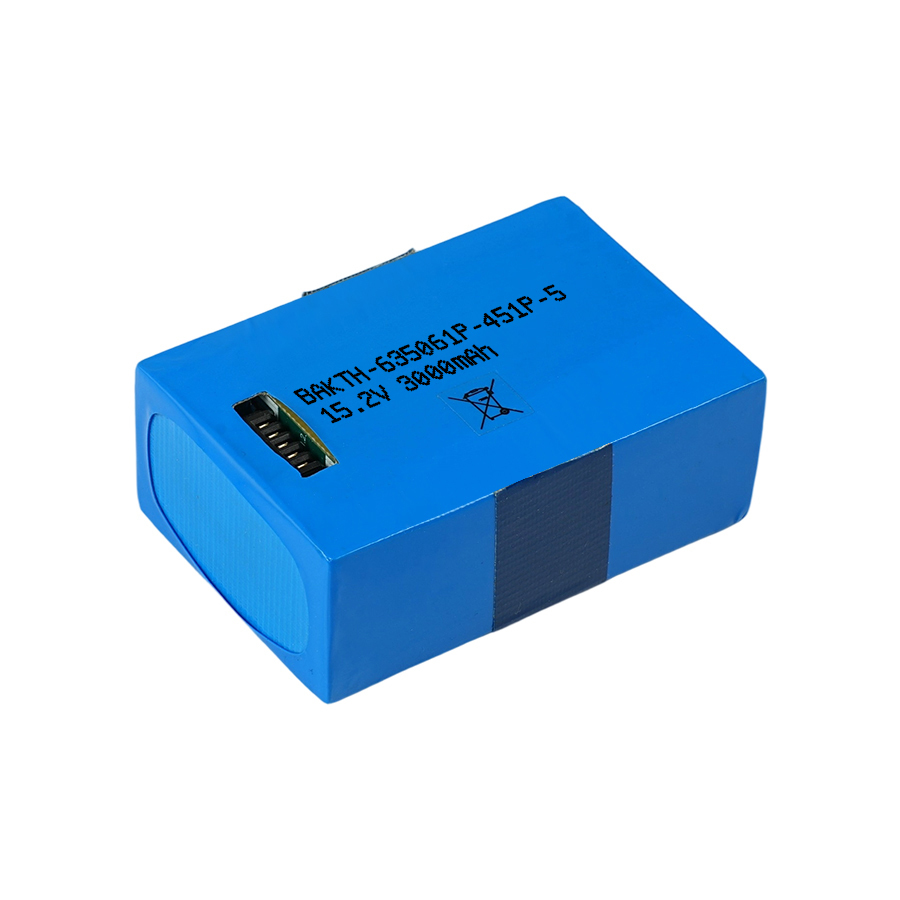

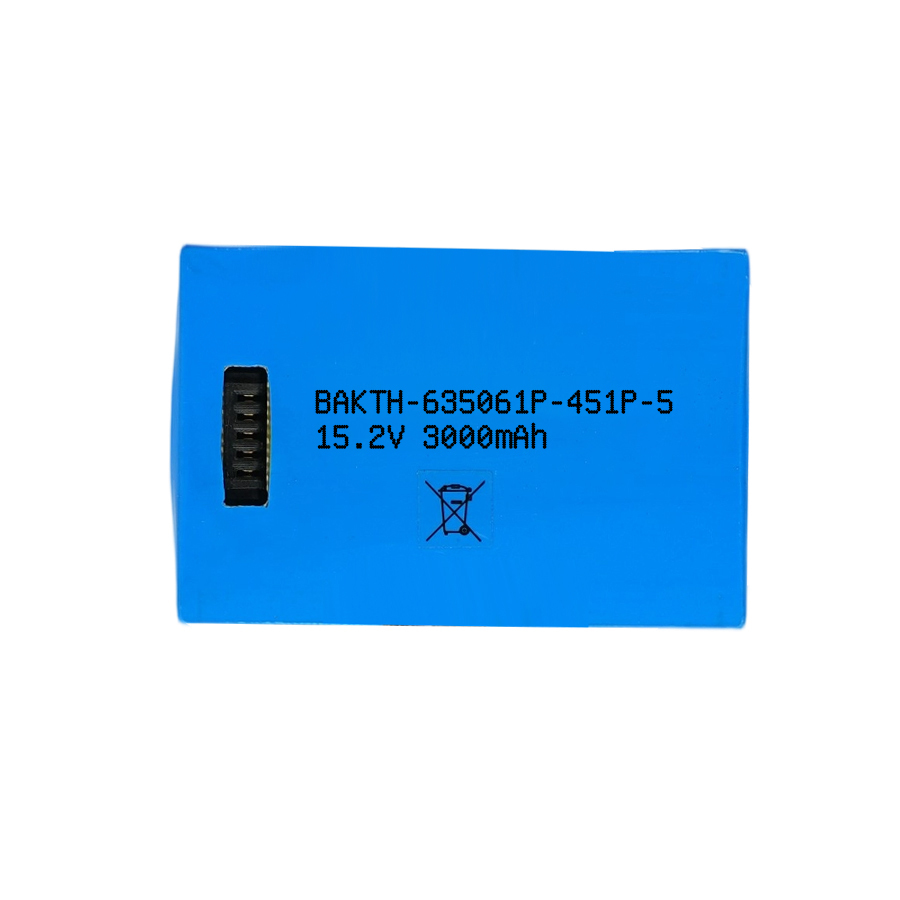

Housed in a rigid, rectangular polymer pouch with approximate dimensions of 8.0 × 50 × 65 mm, optimized for integration into medium-power portable systems such as industrial handheld scanners, professional cordless tools, medical diagnostic devices, and compact UAV payloads.
Description:
| Model No. | BAKTH-635061-451P-5 |
| Brand Name | BAKTH / Neutral / OEM |
| Compliant certification standards | IEC62133 / UN38.3 / RoHS |
| Discharging temperature | 0~45℃ |
| Electrical Performance | |
| Nominal Voltage | 15.2 V |
| Nominal Capacity | 3000 mAh |
| Power Capacity | 45.6 Wh |
| Max. charging voltage | 17 V |
| Cut-off voltage | 11.2 V |
2. Recommended Charging Method:
Use a dedicated 4S Li-ion CC/CV balanced charger set to 16.8V ±0.1V (4.2V per cell).
-
- Optimal charge current: 0.5C = 1.5A → maximizes cycle life (>800 cycles)
- Maximum charge current: 1C = 3.0A → for fast charging (reduces cycle life to ~500 cycles)
- Balancing is mandatory: Always use a balanced charger. Unbalanced charging risks cell overvoltage, leading to swelling, thermal runaway, or fire.
Storage Guidelines:
- Short-term storage (<1 month): Maintain at 14.8V–15.6V (3.7–3.9V per cell) → ~50–70% SOC
- Long-term storage (>1 month): Store at 15.2V (3.8V per cell) → ~50% SOC, in dry, cool environment (15–25°C)
- Recharge interval: Recharge every 3 months if unused to prevent deep discharge damage
Operating Environment:
- Charge temperature: 0°C to 45°C
- Discharge temperature: -20°C to 60°C
- Avoid: Exposure to water, metal contact, crushing, or direct sunlight
Safety Warnings:
- ❌ Never disassemble, puncture, or modify the pack
- ❌ Never charge with non-balanced or NiMH/lead-acid chargers
- ❌ Never expose to temperatures >65°C or < -30°C
- ✅ Always use original or certified replacement chargers
- ✅ Store away from flammable materials and metal objects
Applications & Compliance
- Target Devices: Industrial handheld terminals, portable X-ray units, battery-powered drones, field service tools, smart inventory scanners
- Certifications: UN38.3, CE, RoHS, IEC 62133-2, UL 2054
- Transport Compliance: Meets IATA Section II for air shipment (under 100Wh limit — 45.6Wh is well within)
