Rechargeable Snow / Ski Boots Use Flat Lithium Battery 523450AR 1S2P 3.7v 2200mAh Li-ion Battery
| Place of Origin | Guangdong, China |
|---|---|
| Brand Name | BAKTH / Neutral / OEM |
| Model Number | BAKTH-523450AR-1S2P-2M |
| Minimum Order Quantity | 2 sets |
| Price | CN¥43.26/sets 2-499 sets |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Max Load Quantity(cells) | 2 | Battery Type | Solid State |
|---|---|---|---|
| Cycle Life | 500 Cycles | Dimension (L*W*H) | 5.5*34.5*50.5(mm) |
| Application | Toys, Home Appliances, Consumer Electronics | Weight | 80g, About 80g |
| Operating Temperature(℃) | -20 ~ 60℃ | Cathode Materials | LiCoO2 |
| Battery Size | 523450AR | Size | 5.5*34.5*50.5(mm) |
| Max Charge Voltage | 4.2V | Discharge Cut Off Voltage | 2.75V |
| Max Charge Current | 1C | Charging Mode | CC/CV |
| Discharging Temperature | -20 ~ 60℃ | Humidity Range | 0~85% (non-condensing) |
| Warranty | 12 Months | ||
| Highlight | rechargeable lithium ion battery pack,523450ar lithium ion battery pack |
||
Product Description
Rechargeable Snow/Ski Boots Flat Lithium Battery 523450AR 1S2P 3.7v 2200mAh Li-ion
Key Specifications
Battery Type
Solid state Li-ion
Nominal Capacity
2200mAh
Nominal Voltage
3.7V
Dimensions
5.5×34.5×50.5(mm)
Weight
Approx. 80g
Operating Temperature
-20℃ to 60℃
Cycle Life
500 cycles
Warranty
12 Months
Technical Attributes
| Max Charge Voltage | 4.2V |
| Discharge Cut-off Voltage | 2.75V |
| Max Charge Current | 1C |
| Charging Mode | CC/CV |
| Humidity Range | 0~85% (non-condensing) |
| Cathode Materials | LiCoO2 |
| PCB/PCM | Yes |
| Connector | 2P connector |
Product Features
- Produced using automated production line with high-quality materials
- Strict quality control processes
- Rechargeable lithium-ion battery technology
- Compact flat design optimized for snow/ski boot applications
- Samples available for evaluation
Storage Conditions
| ≤1 month | 45~60℃ |
| ≤3 months | 25~45℃ |
| ≤12 months | -20~25℃ (≤60%RH) |
| Long-term storage | Recharge every 6 months |

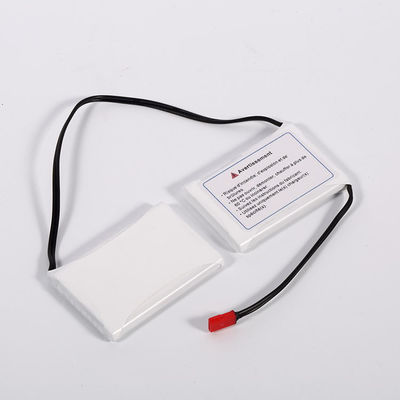

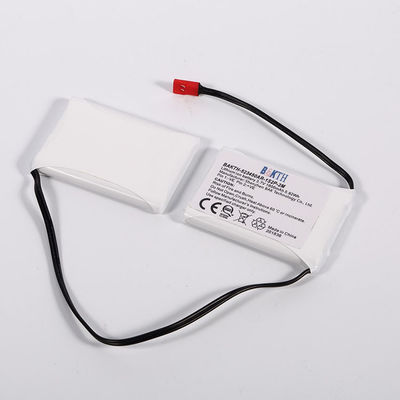

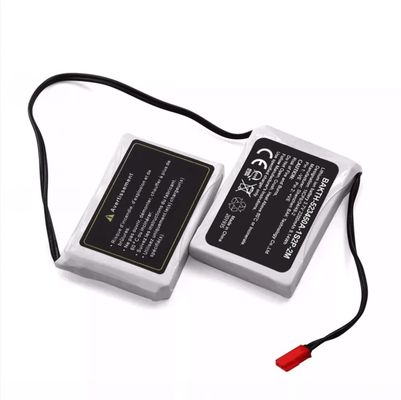

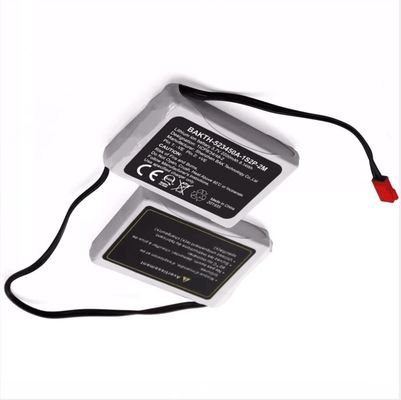

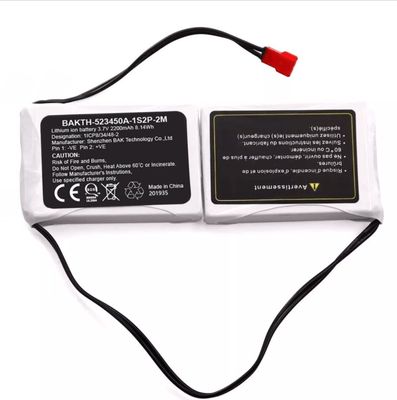

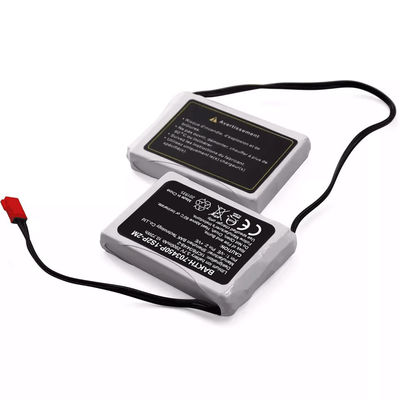

Product Images
Compatible Battery Models
| Model | Capacity | Voltage | Discharge Current | Cycle Life |
|---|---|---|---|---|
| N18650CP High energy | 3350mAh | 3.6V | 30A | 600 cycles |
| N18650CK High energy | 3050mAh | 3.6V | 2C | 500 cycles |
| N18650CL High energy | 3000mAh | 3.6V | 3C | 1000 cycles |
| 26650FS2-Fe Stability | 3300mAh | 3.2V | 5C | 2000 cycles |
