Customizable High-Performance Li-ion Batteries 18650 10S4P 24V 36V 48V 10Ah Lithium Battery Pack for E Bike
| Place of Origin | Guangdong, China |
|---|---|
| Brand Name | BAKTH |
| Model Number | 18650-Pack |
| Price | CN¥702.96/pieces 1-49 pieces |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Max Load Quantity(cells) | 40 | Battery Type | Solid State |
|---|---|---|---|
| Cycle Life | 500 Cycles | Dimension (L*W*H) | About 190*76*80 (mm) |
| Application | Power Tools, Home Appliances, Electric Vehicles, Electric Bicycles/Scooters, Electric Power Systems, Toys, SUBMARINES, Consumer Electronics, Electric Vehicles | Weight | About 2Kg |
| Operating Temperature(℃) | -20~60℃ | Cathode Materials | LiCoO2 |
| Type | Li-Ion | Size | About 190*76*80 (mm) |
| Max Charge Voltage | 40V | Standard Charge Current | 0.2C |
| Charging Mode | CC/CV | Discharge Cut Off Voltage | 27.5V |
| Max Charge Current | 10A | Discharging Temperature | -20 ~ 60℃ |
| Warranty | 3months-1year | ||
| Highlight | 18650 lithium ion battery pack,24v lithium ion battery pack |
||
Product Description

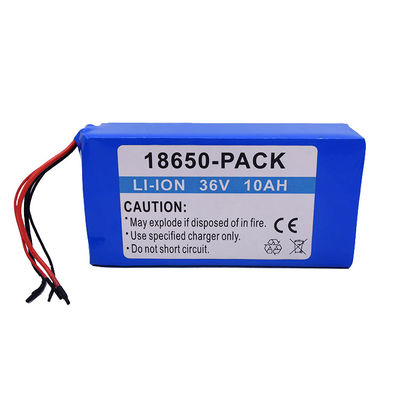

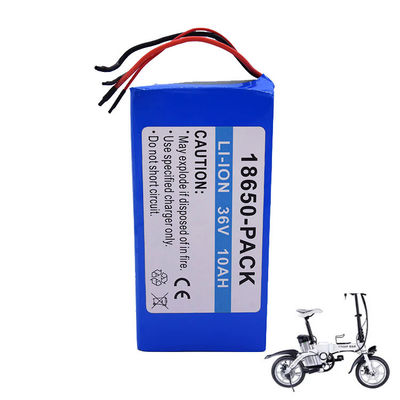

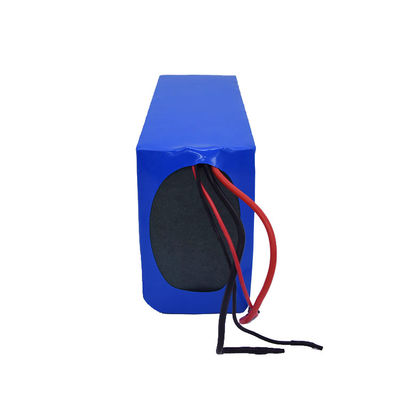

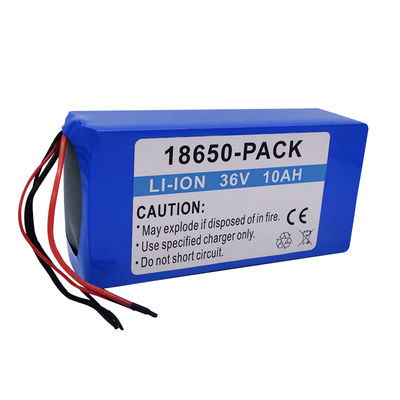

Customizable High-Performance Li-ion Batteries 18650 10S4P 24V 36V 48V 10Ah Lithium Battery Pack for E Bike
Product Overview
High-quality customizable lithium-ion battery pack designed for electric bicycles and various industrial applications. Features automatic production line manufacturing with strict quality control for reliable performance.
Key Specifications
Battery Type:
Li-Ion (Solid state)
Nominal Voltage:
36V
Nominal Capacity:
10Ah
Max Charge Voltage:
42V
Cycle Life:
500 cycles
Dimensions:
190×76×80 mm
Weight:
2 kg
Operating Temperature:
-20℃ to 60℃
Warranty:
3 months - 1 year
Technical Specifications
| Parameter | Value |
|---|---|
| Standard Charge Current | 0.2C |
| Max Charge Current | 10A |
| Discharge Cut-off Voltage | 27.5V |
| Standard Discharge Current | 0.2C |
| Max Discharge Current | 12A |
| Charging Mode | CC/CV |
| Cathode Materials | LiCoO2 |
| PCB/PCM Protection | Yes |
Environmental Specifications
Charging Temperature:
0℃ to 45℃
Storage Temperature:
-20℃ to 25℃ (long-term)
Humidity Range:
0-85% (non-condensing)
Product Features
- Produced using automatic production line with high-quality materials
- Strict quality control throughout manufacturing process
- Available in multiple configurations (10S4P)
- Customizable voltage options (24V, 36V, 48V)
- Suitable for various applications including e-bikes, power tools, and electric vehicles
- Includes PCB/PCM protection
- OEM services available

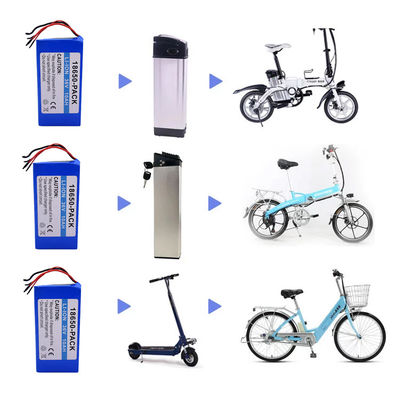

Applications
Electric bicycles/scooters, power tools, home appliances, electric vehicles, electric power systems, consumer electronics, and industrial applications.
Product Models
| Model | Capacity | Voltage | Max Discharge | Cycle Life | Dimensions |
|---|---|---|---|---|---|
| N18650CP High energy | 3350mAh | 3.6V | 30A | 600 cycles | 65×18 mm |
| N18650CK High energy | 3050mAh | 3.6V | 2C | 500 cycles | 65×18 mm |
| N18650CL High energy | 3000mAh | 3.6V | 3C | 1000 cycles | 65×18 mm |
| N21700CB High energy | 4800mAh | 3.6V | 3C | 1000 cycles | 65×18 mm |
| 26650FS2-Fe Stability | 3300mAh | 3.2V | 5C | 2000 cycles | 26×65.5 mm |
