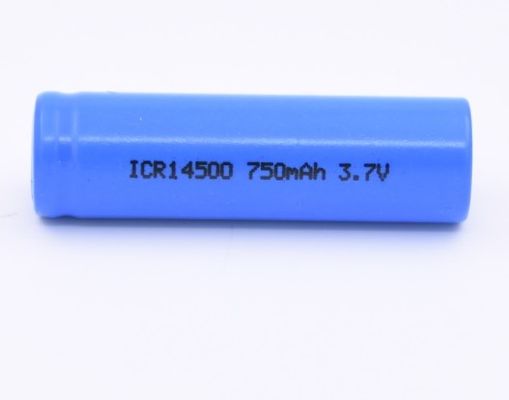

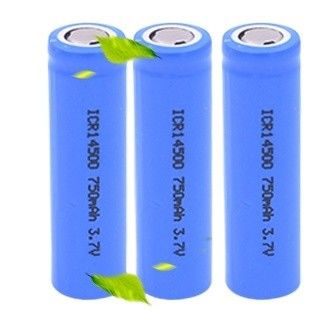

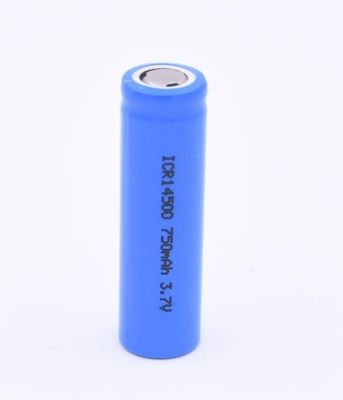

Real Capacity Rechargeable Li Ion Lithium Battery ICR14500 3.7V 750mAh For Power Tools
| Place of Origin | Guangdong, China |
|---|---|
| Brand Name | BAKTH / Neutral / OEM |
| Model Number | 14500 |
| Minimum Order Quantity | 2 pieces |
| Price | CN¥10.46/pieces 2-99 pieces |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Battery Size | ICR14500 3.7V 750mAh | Battery Type | Solid State |
|---|---|---|---|
| Cycle Life | 500 Cycles | Cathode Materials | LiCoO2 |
| Application | Toys, Power Tools, Consumer Electronics | Weight | About 15g |
| Operating Temperature(℃) | -20 ~ 60℃ | Product Features And Features | A Variety Of Electrical Appliances |
| Size | 50.5*14.5 (mm) Max. | Max Charge Voltage | 4.2V |
| Discharge Cut Off Voltage | 0.2C | Max Charge Current | 650mAh |
| Charging Mode | CC/CV | Charging Temperature | 0~45℃ |
| Discharging Temperature | -20 ~ 60℃ | Warranty | 12 Months |
| Anode Material | LCO | ||
| Highlight | 750mAh Rechargeable Li Ion Lithium Battery,750mAh li on rechargeable batteries,3.7V Rechargeable Li Ion Lithium Battery |
||
Product Description
Real Capacity Rechargeable Li Ion Lithium Battery ICR14500 3.7V 750mAh For Power Tools
Product Specifications
| Battery Size | ICR14500 3.7V 750mAh |
| Battery Type | Solid state |
| Cycle Life | 500 cycles |
| Cathode Materials | LiCoO2 |
| Application | Toys, Power Tools, Consumer Electronics |
| Weight | About 15g |
| Operating Temperature | -20 ~ 60℃ |
| Size | 50.5*14.5 (mm) Max. |
| Max charge voltage | 4.2V |
| Discharge cut off voltage | 0.2C |
| Max charge current | 650mAh |
| Charging mode | CC/CV |
| Charging Temperature | 0~45℃ |
| Discharging Temperature | -20 ~ 60℃ |
| Warranty | 12 months |
| Anode Material | LCO |
Product Description
The Real Capacity ICR14500 3.7V 750mAh Rechargeable Li-Ion Lithium Battery Cell is designed for power tools and various electrical appliances, offering reliable performance with high-quality materials and automatic production.
Key Features:
- Production by automatic production line with high quality materials
- Nominal capacity: 750mAh (0.2C)
- Nominal voltage: 3.7V
- Max charge voltage: 4.2V
- Discharge cut off voltage: 2.75V
- Cycle life: 300 cycles (≥80%)
Technical Specifications
| Parameter | Value |
|---|---|
| Standard charge current | 0.2C |
| Max charge current | 650mAh |
| Standard discharge current | 0.2C |
| Max discharge current | 1500mAh |
| Charging mode | CC/CV |
| Internal resistance | ≤100mΩ (AC Impedance, 1000Hz) |
| Charging Temperature | 0~45℃ |
| Discharging Temperature | -20 ~ 60℃ |
| Storage temperature |
≤1 month: 45~60℃ ≤3 months: 25~45℃ ≤12 months: -20~25℃ ≤60%RH Recharge every 6 months |
| Humidity Range | 0~85% (non-condensing) |
| Dimension | 43.5*14.5 (mm) Max |
| Weight | about 15g |
| Brand | BAKTH / Neutral / OEM |
| Warranty | 12 Months |
| PCB/PCM | none |
| Connector | none |
| Battery type | Li-ion |
| Rechargeable | Yes |
Product Line Overview
| Model | Nominal capacity | Nominal voltage | Max discharge current | Cycle life | Dimension | Certificate (Part) | Battery type |
|---|---|---|---|---|---|---|---|
| N18650CP High energy | 3350mAh | 3.6V | 30A | 600cycles | 65.0*18 (mm)Max | UN38.3 UL1642 IEC62133 | 18650 cell |
| N18650CK High energy | 3050mAh | 3.6V | 2C | 500cycles | 65.0*18 (mm)Max | ||
| N18650CL High energy | 3000mAh | 3.6V | 3C | 1000cycles | 65.0*18 (mm)Max | ||
| N18650CNP stability | 2500mAh | 3.6V | 30A | 600cycles | 65.0*18 (mm)Max | ||
| H18650CIL High rate | 2500mAh | 3.6V | 3C | 1000cycles | 65.0*18 (mm)Max | ||
| H18650CH High rate | 2600mAh | 3.6V | 4C | 500cycles | 65.0*18 (mm)Max | ||
| H18650CC High rate | 2150mAh | 3.6V | 5C | 1000cycles | 65.0*18 (mm)Max | ||
| N21700CB High energy | 4800mAh | 3.6V | 3C | 1000cycles | 65.0*18 (mm)Max | ||
| 26650FS2-Fe Stability | 3300mAh | 3.2V | 5C | 2000cycles | 26*65.5 (mm)Max | LiFEPO4 | |
| 26650FS3-Fe Stability | 3600mAh | 3.2V | 3C | 2000cycles | 26*65.5 (mm)Max | ||
| 26650HP-Fe High rate | 2200mAh | 3.2V | 15C | 2000cycles | 26*65.5 (mm)Max |
