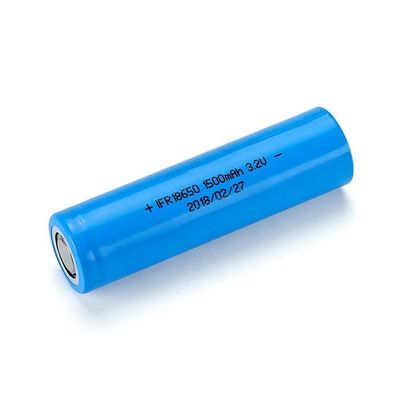

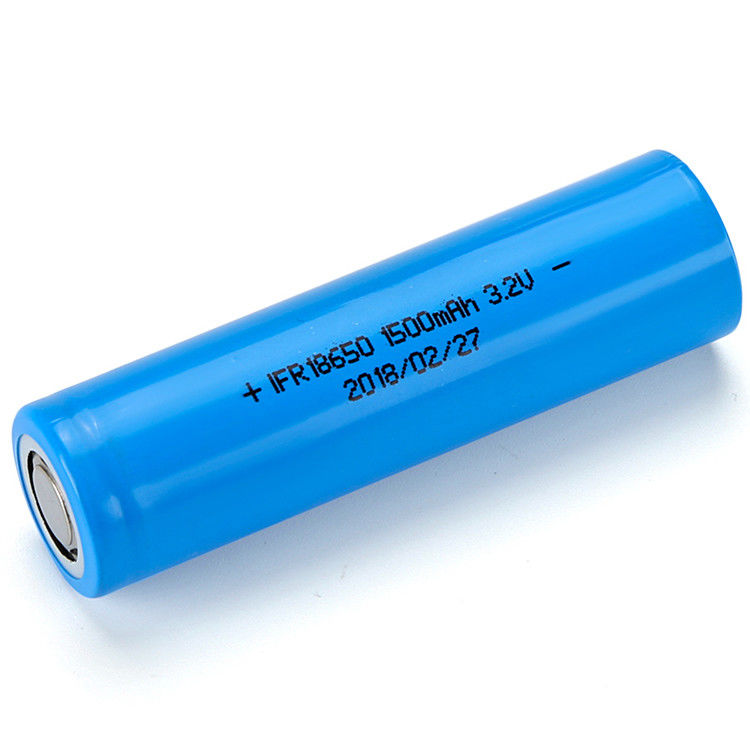

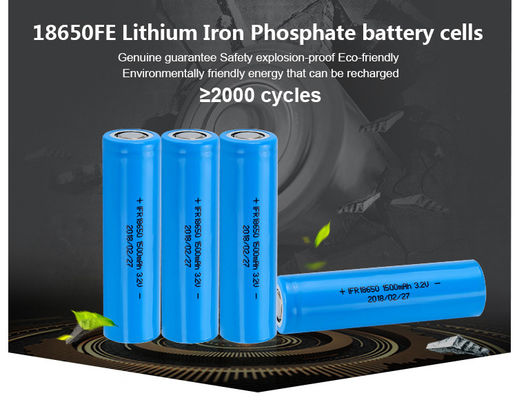

Deep Cycle LiFePO4 Batteries 18650FE 3.2v 1500mAh Cylindrical Lithium Iron Phosphate Battery
| Place of Origin | Guangdong, China |
|---|---|
| Brand Name | BAKTH / Neutral / OEM |
| Certification | UL |
| Model Number | 18650FE |
| Minimum Order Quantity | 2 pieces |
| Price | CN¥10.82/pieces 2-499 pieces |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Max Load Quantity(cells) | 1 | Battery Type | Solid State |
|---|---|---|---|
| Cycle Life | 500 Cycles | Dimension (L*W*H) | 18.5*65.1(mm) Max |
| Application | Toys, Power Tools, Home Appliances, Consumer Electronics, SUBMARINES | Weight | About 35g |
| Operating Temperature(℃) | -20~60℃ | Cathode Materials | LiFePO4 |
| Battery Size | 18650FE | Size | 18.5*65.1(mm) Max |
| Max Charge Voltage | 3.65V | Discharge Cut Off Voltage | 2.0V |
| Standard Charge Current | 0.2C | Max Charge Current | 1500mAh |
| Charging Mode | CC/CV | Discharging Temperature | -20 ~ 60℃ |
| Type | LiFEPO4 |
Product Description
Deep Cycle LiFePO4 Batteries 18650FE 3.2v 1500mAh Cylindrical Lithium Iron Phosphate Battery
Product Specifications
| Attribute | Value |
|---|---|
| Battery Type | Solid state |
| Cycle Life | 500 cycles |
| Dimension (L*W*H) | 18.5*65.1(mm) Max |
| Application | Toys, Power Tools, Home Appliances, Consumer Electronics, SUBMARINES |
| Weight | about 35g |
| Operating Temperature | -20~60℃ |
| Cathode Materials | LiFePO4 |
| Battery Size | 18650FE |
| Max charge voltage | 3.65V |
| Discharge cut off voltage | 2.0V |
| Standard charge current | 0.2C |
| Max charge current | 1500mAh |
| Charging mode | CC/CV |

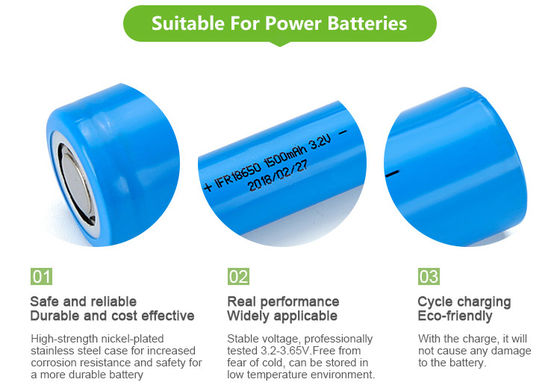

Product Features
- Production by automatic production line with high quality materials
- Long cycle life of 2000 cycles
- Wide operating temperature range (-20~60℃)
- High safety LiFePO4 chemistry
- Compact cylindrical 18650FE form factor

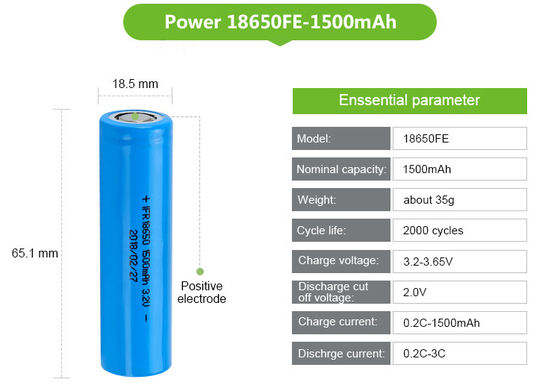

Technical Specifications
Nominal capacity:
1500mAh (0.2C)
Nominal voltage:
3.2V
Max charge voltage:
3.65V
Discharge cut off voltage:
2.0V
Standard charge current:
0.2C
Max charge current:
1500mAh
Max discharge current:
3C
Charging Temperature:
0~45℃
Discharging Temperature:
-20 ~ 60℃
Storage temperature:
≤1 month: 45~60℃
≤3 months: 25~45℃
≤12 months: -20~25℃
≤3 months: 25~45℃
≤12 months: -20~25℃
Humidity Range:
0~60% (non-condensing)
Dimension:
18.5*65.1 (mm)Max
Weight:
about 35g
Warranty:
12 Months
Product Line
| Model | Nominal capacity | Nominal voltage | Max discharge current | Cycle life | Dimension | Certificate | Battery type |
|---|---|---|---|---|---|---|---|
| N18650CP High energy | 3350mAh | 3.6V | 30A | 600cycles | 65.0*18 (mm)Max | UN38.3 UL1642 IEC62133 | 18650 cell |
| N18650CK High energy | 3050mAh | 3.6V | 2C | 500cycles | 65.0*18 (mm)Max | ||
| N18650CL High energy | 3000mAh | 3.6V | 3C | 1000cycles | 65.0*18 (mm)Max | ||
| N18650CNP stability | 2500mAh | 3.6V | 30A | 600cycles | 65.0*18 (mm)Max | ||
| H18650CIL High rate | 2500mAh | 3.6V | 3C | 1000cycles | 65.0*18 (mm)Max | ||
| H18650CH High rate | 2600mAh | 3.6V | 4C | 500cycles | 65.0*18 (mm)Max | ||
| H18650CC High rate | 2150mAh | 3.6V | 5C | 1000cycles | 65.0*18 (mm)Max | ||
| N21700CB High energy | 4800mAh | 3.6V | 3C | 1000cycles | 65.0*18 (mm)Max | ||
| 26650FS2-Fe Stability | 3300mAh | 3.2V | 5C | 2000cycles | 26*65.5 (mm)Max | LiFEPO4 | |
| 26650FS3-Fe Stability | 3600mAh | 3.2V | 3C | 2000cycles | 26*65.5 (mm)Max | ||
| 26650HP-Fe High rate | 2200mAh | 3.2V | 15C | 2000cycles | 26*65.5 (mm)Max |
