18650 7S4P 25.2V 10.4ah Suitable for Luminaire Lighting Rechargeable Li Ion 18650 Li-ion Battery Pack
| Brand Name | BAKTH/OEM |
|---|---|
| Model Number | BAKTH-18650-7S4P-2 |
| Minimum Order Quantity | 2 pieces |
| Price | CN¥490.27/pieces 2-49 pieces |
| Packaging Details | meet IATA |
| Supply Ability | 180000 Piece/Pieces per Month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Battery Size | 18650 | Application | Home Appliances, Golf Carts, Electric Bicycles/Scooters, Electric Vehicles, Electric Wheelchairs, Electric Forklifts |
|---|---|---|---|
| Weight | 1.5KG | Type | Li-Ion |
| Size | 158*82*72(mm) | Max Charge Voltage | 29.4V |
| Discharge Cut Off Voltage | 19.25V | Max Charge Current | 5A |
| Max Dischrge Current | 15A | Charging Mode | CC/CV |
| Discharging Temperature | -20 ~ 60℃ | Warranty | 12 Months, 3months-1year |
| Connector | 2 Cables | Anode Material | NCM |
| Chargeable | Yes | The Charging Ratio | 0.5C |
| The Discharge Rate | 1C | Storage Type | -20℃~60℃ |
| Port | Shenzhen/Hongkong | ||
| Highlight | 18650 lithium ion battery pack,rechargeable lithium ion battery pack |
||
Product Description

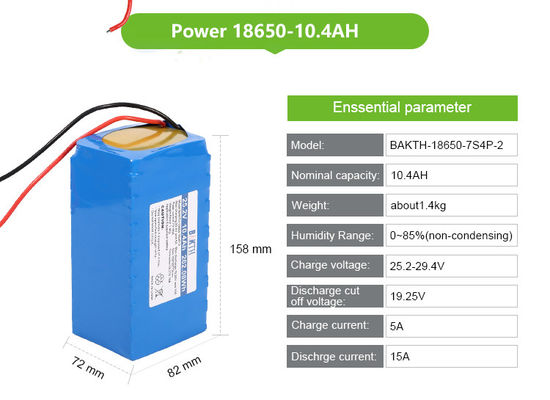

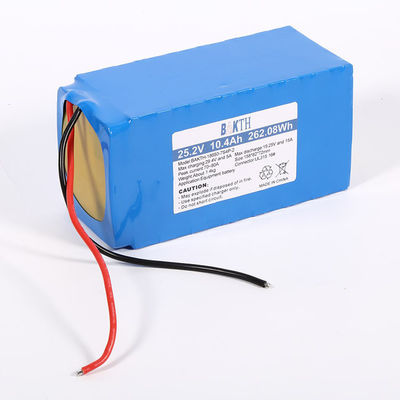

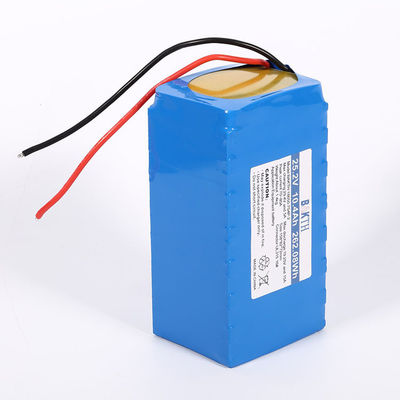

18650 7S4P 25.2V 10.4ah Rechargeable Li-Ion Battery Pack
Product Specifications
| Battery Size | 18650 |
| Application | Home Appliances, Golf Carts, Electric Bicycles/Scooters, Electric Vehicles, Electric Wheelchairs, Electric Forklifts |
| Weight | 1.5KG |
| Type | Li-Ion |
| Size | 158*82*72(mm) |
| Max Charge Voltage | 29.4V |
| Discharge Cut Off Voltage | 19.25V |
| Max Charge Current | 5A |
| Max Discharge Current | 15A |
| Charging Mode | CC/CV |
| Discharging Temperature | -20 ~ 60℃ |
| Warranty | 12 Months, 3months-1year |
| Connector | 2 cables |
| Anode Material | NCM |
| Chargeable | Yes |
| Charging Ratio | 0.5C |
| Discharge Rate | 1C |
| Storage Type | -20℃~60℃ |
| Port | Shenzhen/Hongkong |
Product Features
Key Specifications
| Nominal Capacity | 10.4AH | Dimension | 158*82*72(mm) |
| Nominal Voltage | 25.2V | Weight | about 1.5Kg |
| Max Charge Voltage | 29.4V | Brand | BAKTH / Neutral / OEM |
| Discharge Cut Off Voltage | 19.25V | Warranty | 12 Months |
| Max Charge Current | 5A | PCB/PCM | none |
| Max Discharge Current | 15A | Connector | 2 cables |
| Charging Mode | CC/CV | Battery Type | Li-ion |
| Discharging Temperature | -20 ~ 60℃ | Rechargeable | Yes |
Storage Conditions
- ≤1 month: 45~60℃
- ≤3 months: 25~45℃
- ≤12 months: -20~25℃ ≤60%RH
- Recharge every 6 months
Humidity Range: 0~85% (non-condensing)
Product Images
Main Product Models
| Model | Nominal Capacity | Nominal Voltage | Max Discharge Current | Cycle Life | Dimension | Warranty | Battery Type |
|---|---|---|---|---|---|---|---|
| N18650CP | 3350mAh (0.2C) min 3250mAh (0.2C) | 3.6V | 30A | 600cycles | 65.0*18 (mm)Max. | 12Months | Li-ion |
| N18650CK | 3050mAh (0.2C) 2950mAh (0.2C) | 3.6V | 2C | 500cycles | 65.0*18 (mm)Max. | ||
| N18650CL | 3000mAh (0.2C) min 2900mAh (0.2C) | 3.75V | 3C | 1000cycles | 65.0*18 (mm)Max. | ||
| N18650CNP | 2500mAh | 3.6V | 30A | 600cycles | 65.0*18 (mm)Max. | ||
| H18650CIL | 2500mAh (0.2C) 2400mAh (1.0C) | 3.6V | 3C | 1000cycles | 65.0*18 (mm)Max. | ||
| H18650CH | 2600mAh (0.2C) min 2500mAh (0.2C) | 3.6V | 4C | 500cycles | 65.0*18 (mm)Max. | ||
| H18650CC | 2150mAh (0.2C) min 2050mAh (0.2C) | 3.6V | 5C | 1000cycles | 65.0*18 (mm)Max. | ||
| N21700CB | 4800mAh | 3.6V | 3C | 1000cycles | 65.0*18 (mm)Max. | ||
| 103450AR1 | 1700mAh (0.2C) | 3.7V | 0.2C | 300cycles | 10.4*34.5*50.5 (mm)Max. | ||
| 26650MP2-Fe | 3000mAh | 3.2V | 5C | 2000cycles | 26*65.5 (mm)Max. | LiFEPO4 | |
| 26650MP3-Fe | 3300mAh | 3.2V | 3C | 2000cycles | 26*65.5 (mm)Max. | ||
| 26650HP-Fe | 2200mAh (0.2C) | 3.2V | 15C | 2000cycles | 26*65.5 (mm)Max. | ||
| LP-523450-1S-3 | 950mAh | 3.7V | 1C | 300cycles | about5.5*34.5*51(mm) | Lipolymer |
